Qumi Q6

HD LED Pocket Projector with Wi-Fi connectivity

Vivitek Qumi Q6 Front HiRes

Your Personal Projector

The Qumi Q6 is a feature-rich multimedia pocket projector. Weighing in at just 475 grams and with a super-thin 34mm profile, business travellers and home entertainment enthusiast will find the LED HD Q6 to be the ideal portable companion. With WXGA resolution, 800 ANSI lumens of brightness and a 30,000:1 contrast ratio the Q6 projects a bright image of up to 90” (diagonal) in size. Packed full of advanced display features, the Q6 can project from a variety of devices including digital cameras, laptops, smart phones, tablets, USB flash drives and directly from it’s 2.5 GB (user accessible) on-board memory. The projector is ready with MHL, Wifi and incorporates an embedded media and document viewer for PC-less playback of documents, photos, videos and audio files. The Wi-Fi connection enables wireless content sharing from Android and iOS devices.
Vivitek Qumi Q6 Combo HiRes

Vivitek Qumi Q6 Combo HiRes

Key features

  • Native WXGA resolution with high definition 720p compatibility
  • Up to 800 ANSI lumens of brightness with a 30,000:1 contrast ratio
  • Project a large and wide screen image up to 2.3m (90”) in diameter
  • LED light source with up to 30,000 hours of operation
  • Weighs just 475 grams and is 34mm thick
  • Stream and project documents, photos, movies and other content with the integrated wireless system
  • Wi-Fi connection enables wireless content sharing from Android and iOS devices.
  • MHL device compatibility for streaming of video and audio content from a compatible mobile device
  • Built-in MS Office® and Adobe™ PDF document viewer
  • Display content directly from a USB flash drive or from the on board memory
  • Advanced display connectivity including: HDMI, USB, and internal Wifi
  • Up to four devices can simultaneous display separate content (Selected materials only) onto one large side-by-side projection (4-to-1 split screen) (Requires EzCast Pro App)
  • 3D-compatibility via DLP® Link™, for dazzling and realistic life-like images
  • Built-in 2 watt audio speaker with multiple audio ports for easy connection to other audio devices
  • Touch-sensitive keypad with illuminated backlit controls

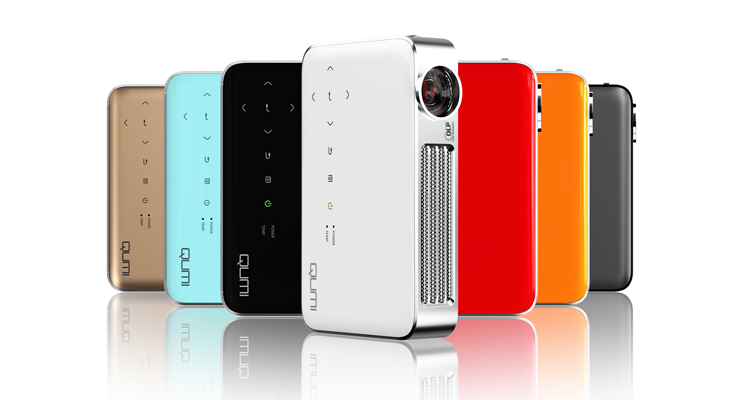

  • 7 exciting colors including: black, white, light blue, red, orange, gold, charcoal gray
BrilliantColor™

BrilliantColor™

BrilliantColor from Texas Instruments is a multi-color processing technology that produces vibrant images. BrilliantColor technology uses up to six colors, instead of just the three primary colors, red, green and blue, to improve color accuracy and brightens secondary colors.
3D Ready

3D Ready

A projector that is 3D Ready can accept a 120Hz frame-sequential 3D signal from a computer. These projectors are not compatible with the HDMI 1.4 3D specification used on 3D Blu-ray players and set-top boxes. 3D ready uses DLP Link Technology from Texas Instruments.
HDTV

HDTV

High-Definition Television. Generic term that indicates a higher resolution format than previous standards. At present, denotes anything higher than a 480p signal. Most common formats are 720p, 1080i and 1080p.
HDMI

HDMI

HDMI (High Definition Multimedia Interface) is an uncompressed, all-digital audio/video interface that supports audio/video sources such as a set-top box, DVD player, A/V receiver, and video monitors such as a digital projector or digital television (DTV). HDMI is backward compatiable with DVI 1.0 specification and supports HDCP.

Related Products

Vivitek Qumi Q5 Front HiRes

Qumi Q5

WXGA (1280 x 800)

500 ANSI Lumens

C.R.: 30,000:1

T.R.: 1.55:1

490 kg

View details
Vivitek Qumi Q7 Front HiRes

Qumi Q7

WXGA (1280 x 800)

1000 ANSI Lumens

C.R.: 30,00

T.R.: 1.3 - 1.43 : 1

14 kg

View details
Native ResolutionWXGA (1280 x 800) HD720p
Brightness800 ANSI Lumens
Contrast Ratio30,000:1
Max. ResolutionUXGA (1600 x 1200) @60Hz
Native Aspect Ratio16:10
Lamp Life and Type30,000 Hours LED
Display TypeSingle chip DLP® Technology by Texas Instruments
Chip Size 0.45” DMD
Throw Ratio 1.55:1
Image Size (Diagonal)30"~ 90"
Projection Distance1 - 3m
Projection LensF/1.9, f=15.3
Zoom Ratio1x
Offset ( Based on Full Image Height) 105%
Keystone CorrectionVertical + 33°/ - 45°
Speakers2W x 1

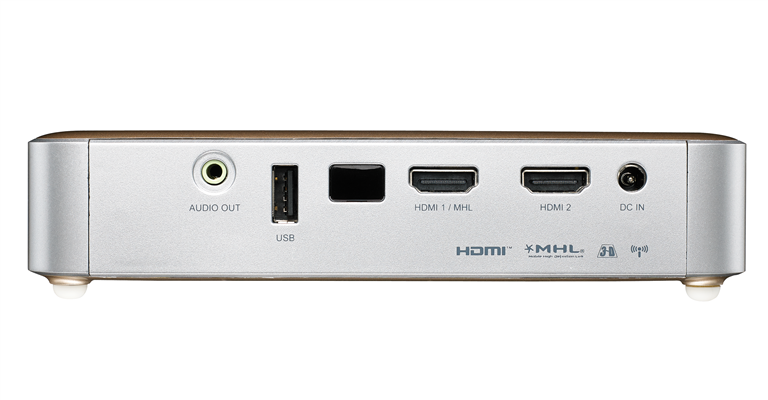

I/O Connection Ports HDMI ((HDMI/MHL x1, HDMI x1)), Audio-Out (Mini-Jack), USB type A for Display(Frame display) and JPG reader(Photo: Jpeg / Video: Mpeg4,H.264)
Dimensions (W x D x H)165 x102.4 x 34mm
Weight0.475 kg
Noise Level34dB/ 30dB (Normal/ ECO)
PowerSupply: AC 100-240V, 50/60Hz Consumption: 66W/ 52W (Normal/ Eco), <0.5W (Standby Mode)
WiFi USB Dongle USB type A Built-in
Standard Accessories HDMI-MHL Cable, User Manual (CD), Carrying Case, Quick Start Guide, Warranty Card (by region), Remote Controller (with battery), WiFi USB Dongle USB type A , AC Power Cord
Optional Accessories Remote Control P/N: 5041848500
Vivitek Qumi Q6 Front HiRes
Vivitek Qumi Q6 Front HiRes
Vivitek Qumi Q6 Front HiRes
Vivitek Qumi Q6 Front HiRes
Vivitek Qumi Q6 Front HiRes
Vivitek Qumi Q6 Front HiRes
Vivitek Qumi Q6 Front HiRes
Vivitek Qumi Q6 Front HiRes
Vivitek Qumi Q6 Front HiRes
Vivitek Qumi Q6 Front HiRes
Vivitek Qumi Q6 Front HiRes

IR Remote Control

QUMI Q5 RM

Description: Remote Control Key Card 15 Keys
Part number: 5041848500

Vivitek User manuals

Vivitek Projector Distance Calculator v2.0



>




A
A =
Note on using the projector distance planning calculator and tips for projector installation:
Calculator accuracy +/-5%. The calculator is designed to help you plan your installation and find the right projector. It is not designed to provide exact dimensions. When calculating the throw distance, bear in mind that the distance is measured from the front of the lens to the projection surface, except for Ultra Short Throw projectors with a mirror system. Where possible, attempt to position the projector in the middle of the zoom range , which is where the optics is optimized for. Try to avoid the extreme outer boundaries as the projector lenses has variance and performance tolerances that could make the screen not being filled, or the image being larger than the screen, caused by small variances in the optical systems. If you need to be at the extreme outer boundaries, we recommend that you order the projector and test the actual distance in your environment before fixing any mounting parts to the wall or ceiling.
