BW566

Portable widescreen projector

Vivitek D912HD Right Hero

Portable widescreen projector with long-life lamp and multiple I/O ports

The BW566 is WXGA (1280x800) native resolution projector featuring DLP® and BrilliantColor™ technologies to display distinct, vibrant images in a widescreen format. The Vivitek BW566 features numerous connectivity options including HDMI v1.4, a brightness level of 4000 ANSI Lumens, and a high 30000:1 contrast ratio. With Direct-3D capabilities, the BW566 is more than capable of handling media applications available now and in the future. The Dynamic Eco Mode saves energy consumption and increases lamp life up to 10,000 hours.
VIVITEK D912HD front 011 m
Vivitek D912HD IO Ports

Key features

  • Up to 4,000 ANSI lumens with a 30,000:1 contrast ratio
  • Native WXGA resolution with a maximum WUXGA resolution
  • DLP® and BrilliantColor™ technologies for distinct and vibrant images
  • Low cost of ownership and maintenance with an energy efficient lamp for up to 10,000 hours (Dynamic Eco. Mode) of usage
  • 6 segment (RGBYCW) color wheel for improved and vivid color reproduction
  • Manual zoom and focus for easy adjustment and positioning flexibility
  • Full suite of display connectivity inputs and outputs
  • 2W of total stereo audio power with multiple audio-in and audio-out ports
  • Choose from 8 pre-set display modes to get the most suitable display image
  • Top sided lamp cover for simple lamp removal and insertion
  • Intuitive multiple language OSD (On-screen Display) menu
  • Environmentally friendly with less than 0.5W of power in stand-by mode
  • Portable and lightweight at only 2.6kg (5.7lbs)
  • Anti-theft security features include: Kensington® security slot, and security bar
DLP® Technology

DLP® Technology

DLP (Digital Light Processing) is a display technology from Texas Instruments (TI). The technology inside is often referred to as DMD (Digital Micro-Mirrors). It consists of an array of mirrors where each mirror represents a pixel element. For example, a high-definition DLP projector or rear projector with 1920 x 1080 pixel resolution would have over 2 million tiny mirrors. Each mirror is attached to an electronically driven hinge that controls the amount of colored light that is reflected from
Native Resolution WXGA (1280 x 800)
Brightness4,000 Lumens
Contrast Ratio 30,000:1
Max. Supported ResolutionWUXGA (1920 x1200) @60Hz
Native Aspect Ratio 16:10
Lamp Life and Type 5,000 / 7,000 / 10,000 Hours (Normal / Eco. / Dynamic Eco. Mode), 210W
Display TypeSingle Chip 0.55" DLP Technology by TI
Chip Size0.55” DMD
Throw Ratio1.94 - 2.32
Image Size (Diagonal) 60" - 300"
Projection Distance 1.3 - 8.5 m
Projection LensF = 2.46 - 2.66, f = 21.8 - 25.6 mm
Zoom Ratio1.2x
Offset (Based on Full Image Height) 104%
Keystone CorrectionVertical: +/-40°
Speakers2W

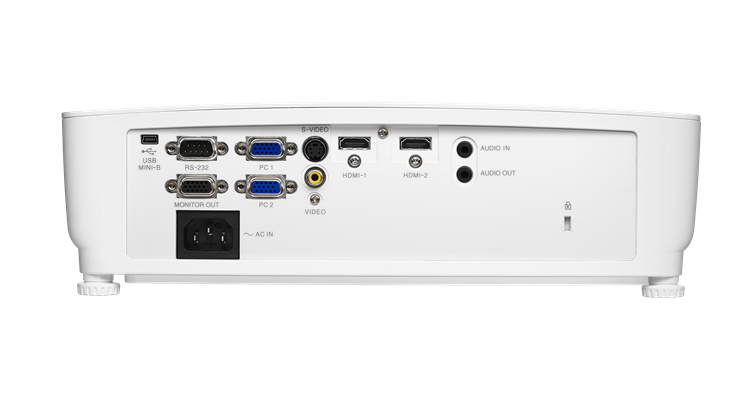

I/O Connection PortsHDMI v1.4b (x2), Composite Video, S-Video, VGA-In (x2), Audio-In (Mini-Jack), VGA-Out, Audio-Out (Mini-Jack), RS232, USB (Service)
Dimensions (W x D x H)332 x 243 x 107 mm
Weight2.6 kg
Noise Level31dB / 28dB (Normal / Eco. Mode)
PowerSupply: AC 100-240V, 50/60Hz
3D Ready(DLP link, PC+Video)Yes
Computer CompatibilityVGA (640 x 480) to WUXGA_RB(1920 x 1200)
Video CompatibilityNTSC, PAL, SECAM / 480i, 480p, 576i, 576p, 720p, 1080i, 1080p
Standard Accessories AC Power Cord, VGA Cable, Remote Control, Documentation Kit
Optional Accessories Carry case, Lamp filter
Vivitek D912HD Top
Vivitek D912HD Right Hero
Vivitek D912HD LeftHero

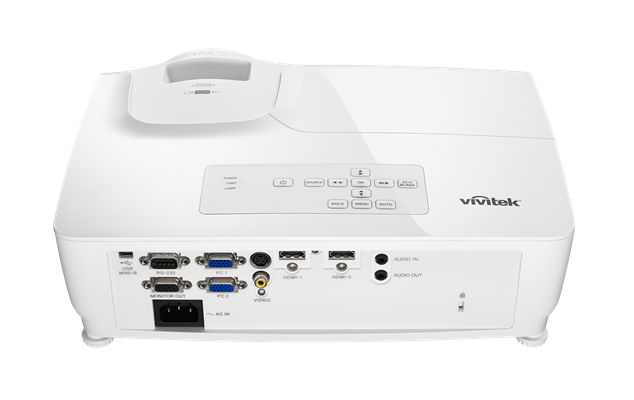

Vivitek D912HD IO Ports
Vivitek D912HD IO Ports
Vivitek D912HD IO Ports
Vivitek D912HD IO Ports

Replacement Lamp

VivitekD7 D8 D9 D5000 Series

Power: 190 W
Part number: No

Vivitek Projector Distance Calculator v2.0



>




A
A =
Note on using the projector distance planning calculator and tips for projector installation:
Calculator accuracy +/-5%. The calculator is designed to help you plan your installation and find the right projector. It is not designed to provide exact dimensions. When calculating the throw distance, bear in mind that the distance is measured from the front of the lens to the projection surface, except for Ultra Short Throw projectors with a mirror system. Where possible, attempt to position the projector in the middle of the zoom range , which is where the optics is optimized for. Try to avoid the extreme outer boundaries as the projector lenses has variance and performance tolerances that could make the screen not being filled, or the image being larger than the screen, caused by small variances in the optical systems. If you need to be at the extreme outer boundaries, we recommend that you order the projector and test the actual distance in your environment before fixing any mounting parts to the wall or ceiling.
