H1060

High Brightness Multimedia 1080p Projector

Vivitek D912HD Right Hero

Great picture, great price, great fun!

The Vivitek H1060 projector delivers exceptional images thanks to 3000 ANSI lumens and a contrast ratio of 15000:1. The H1060 also features dual HDMI inputs, built­in speaker and MHL compatibility for video & audio streaming. Compact and lightweight with a lamp life up to 10000h, the H1060 is the perfect and affordable FullHD projector.

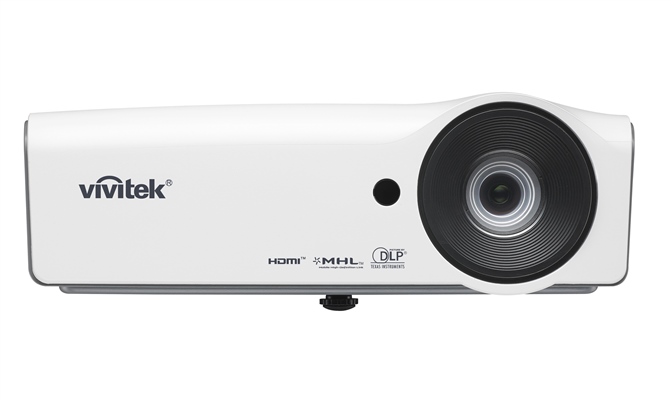

VIVITEK D912HD front 011 m
Vivitek D912HD IO Ports

Key features

  • DLP® technology with BrilliantColor™ for vibrant and rich picture quality
  • High definition 1080p resolution (1920x1080), and 15,000:1 high contrast ratio for clear and crisp visuals
  • Powerful 3,000 ANSI lumens brightness gives sharp image even when the lights are on
  • A long lamp life up to 10,000 hours for low Total Cost of Ownership (TCO)
  • Compact and lightweight at only 2.3kg for easy portability
  • Audio ready with built-in 2 watt speaker, audio-in and audio out ports
  • MHL compatibility for streaming of video and audio content from a compatible mobile device
  • HDMI input for high definition content with the same high quality
DLP® Technology

DLP® Technology

DLP (Digital Light Processing) is a display technology from Texas Instruments (TI). The technology inside is often referred to as DMD (Digital Micro-Mirrors). It consists of an array of mirrors where each mirror represents a pixel element. For example, a high-definition DLP projector or rear projector with 1920 x 1080 pixel resolution would have over 2 million tiny mirrors. Each mirror is attached to an electronically driven hinge that controls the amount of colored light that is reflected from
BrilliantColor™

BrilliantColor™

BrilliantColor from Texas Instruments is a multi-color processing technology that produces vibrant images. BrilliantColor technology uses up to six colors, instead of just the three primary colors, red, green and blue, to improve color accuracy and brightens secondary colors.
3D Ready

3D Ready

A projector that is 3D Ready can accept a 120Hz frame-sequential 3D signal from a computer. These projectors are not compatible with the HDMI 1.4 3D specification used on 3D Blu-ray players and set-top boxes. 3D ready uses DLP Link Technology from Texas Instruments.
HDTV

HDTV

High-Definition Television. Generic term that indicates a higher resolution format than previous standards. At present, denotes anything higher than a 480p signal. Most common formats are 720p, 1080i and 1080p.
Native Resolution 1080p (1920x1080)
Brightness 3000 ANSI Lumens
Contrast Ratio 15,000:1
Max. Supported Resolution WUXGA (1920x1200) @60Hz
Native Aspect Ratio 16:9
Lamp Life and Type 5,000 / 6,000 / 10,000 Hours (Normal / Eco / Dynamic Eco Mode), 190W/160W
Display Type Single chip DLP® Technology by Texas Instruments
Chip Size 0.65" DMD
Throw Ratio 1.14 - 1.5:1
Image Size (Diagonal) 30" - 317"
Projection Distance 1 - 8 m
Projection Lens F = 2.59 - 2.91, f = 16.87 - 21.87 mm
Zoom Ratio 1.3x
Offset (Based on Full Image Height) 115%
Keystone Correction Vertical +/-40°
Speakers 2W
Video Compatibility SDTV (480i, 576i) / EDTV (480p, 576p) / HDTV (720p, 1080i, 1080p), NTSC (M, 3.58/4.43 MHz), PAL (B,D,G,H,I,M,N) SECAM (B,D,G,K,K1,L)

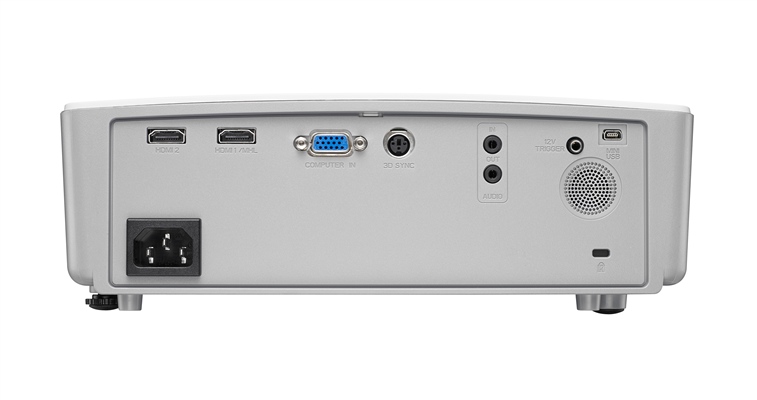

I/O Connection Ports VGA-In (15pin D-Sub), HDMI (HDMIx1, HDMI/MHLx1), Audio-In (Mini-Jack), Audio-Out (Mini-Jack), 12v Trigger, 3D-Sync, USB miniB (Service)
Dimensions (W x D x H) 274.6 x 212 x 100 mm
Weight 2,3 kg
Noise Level 33dB/31dB (Normal/Eco Mode)
Power Supply: AC 100-240V, 50/60Hz Consumption: 200W (Eco. Mode), 240W (Normal Mode), <0.5W (Standby)
3D Ready(DLP link, PC+Video) Yes
Spare Lamp P/N 5811118154-SVV

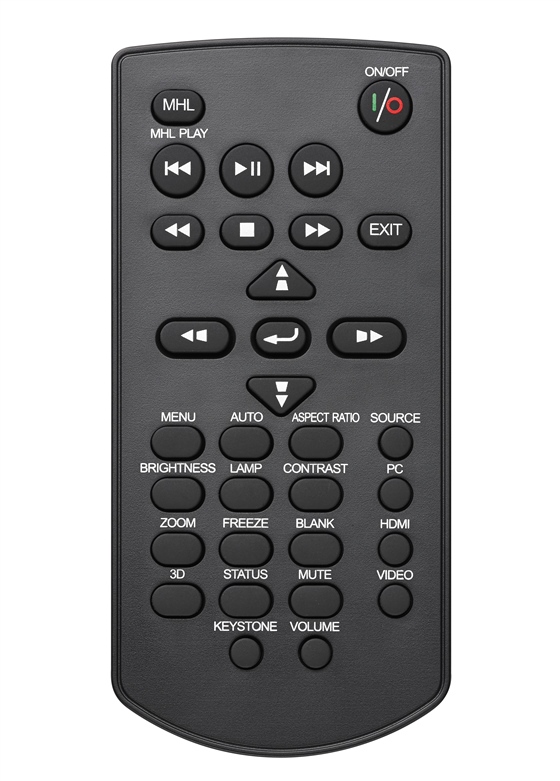

Remote Control P/N 5041848900
Standard Accessories VGA Cable, User Manual (CD), Quick Start Guide, Warranty Card (by region), Remote Controller (with battery), AC Power Cord
Optional Accessories Spare Lamp P/N: 5811118154-SVV , Remote Control P/N: 5041848900
Warranty Standard Warranty: 3 years projector / 1 year on lamp or 1000 hours whichever comes first
UPC Code 813097021625
Vivitek D912HD Top
Vivitek D912HD Right Hero

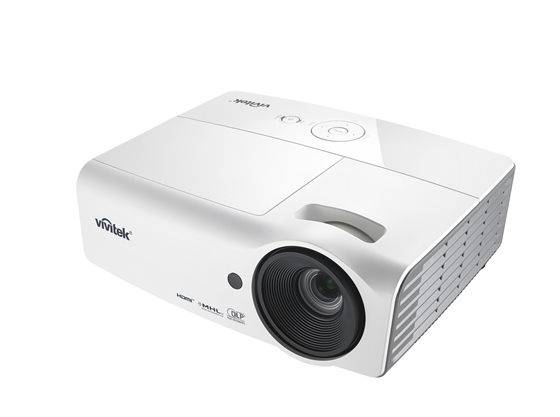

Vivitek D912HD LeftHero
Vivitek D912HD IO Ports

Replacement Lamp

VivitekD7 D8 D9 D5000 Series

Power: Remote Control
Part number: No

Vivitek Projector Distance Calculator v2.0



>




A
A =
Note on using the projector distance planning calculator and tips for projector installation:
Calculator accuracy +/-5%. The calculator is designed to help you plan your installation and find the right projector. It is not designed to provide exact dimensions. When calculating the throw distance, bear in mind that the distance is measured from the front of the lens to the projection surface, except for Ultra Short Throw projectors with a mirror system. Where possible, attempt to position the projector in the middle of the zoom range , which is where the optics is optimized for. Try to avoid the extreme outer boundaries as the projector lenses has variance and performance tolerances that could make the screen not being filled, or the image being larger than the screen, caused by small variances in the optical systems. If you need to be at the extreme outer boundaries, we recommend that you order the projector and test the actual distance in your environment before fixing any mounting parts to the wall or ceiling.
