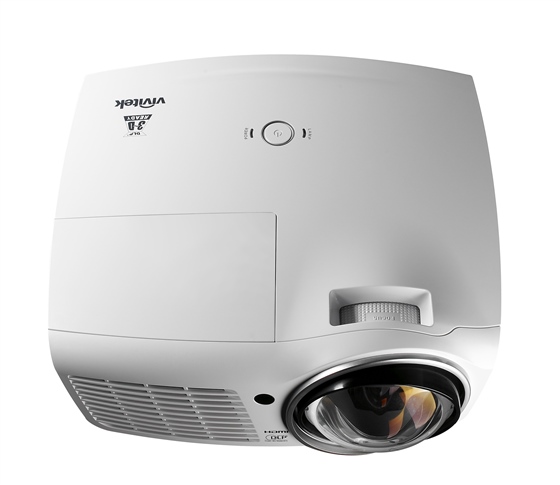

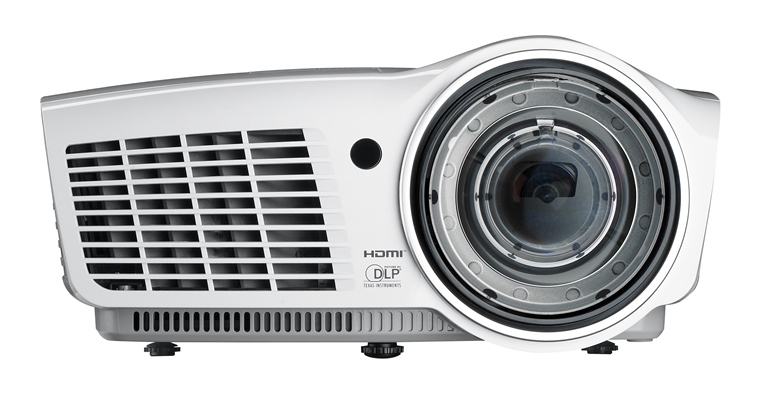

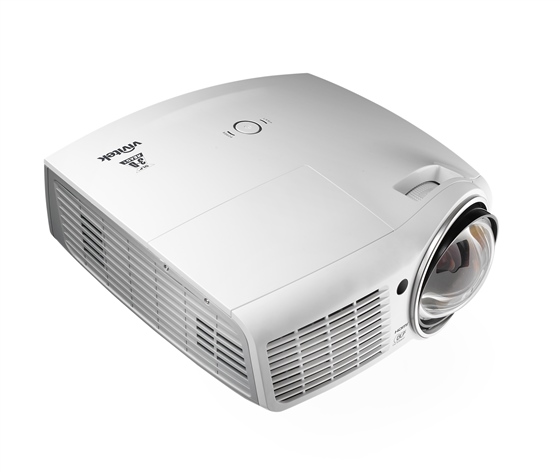

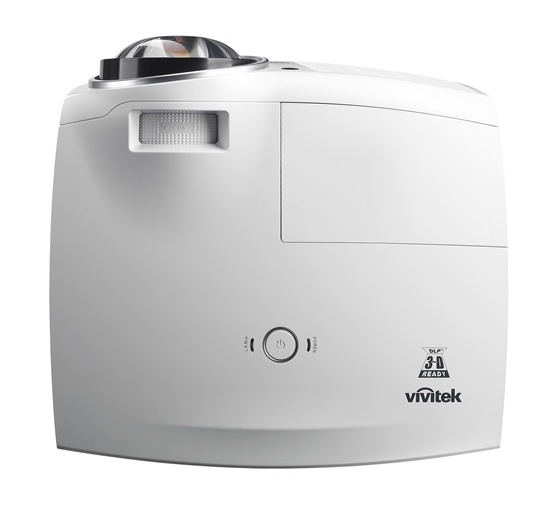

The short throw all-rounder

The D871ST is designed to cater for the education needs. The D871ST projects an 82’’ image diagonal from less than 1 meter distance 0.6:1 T.R. With a brightness of 3000 ANSI Lumens and outstanding contrast ratio of 15.000:1 it delivers a perfect image display. The projector is designed for use in any classroom or is perfect solution wither for small office room and home office. With its light weight and compact form factor this is a short throw projector for easy installation that will fit any budget.

Key features

Native XGA resolution and able to display up to UXGA (1600 x 1200)
Sharp and detailed image quality with DLP® and BrilliantColor™ technologies
Large 82” screen size from only 1 meter away
3000 ANSI lumens of brightness with a 15000:1 contrast
High-efficiency lamp that lasts up to 6,000 hours (in Standard Mode)
3D-Ready via DLP® Link™
Enhanced color and display adjustments
Convenient top loading design to easily replace lamp
Sealed optical engine to keep dust out
Network-ready for integration and system administration via RJ45

DLP® Technology

DLP (Digital Light Processing) is a display technology from Texas Instruments (TI). The technology inside is often referred to as DMD (Digital Micro-Mirrors). It consists of an array of mirrors where each mirror represents a pixel element. For example, a high-definition DLP projector or rear projector with 1920 x 1080 pixel resolution would have over 2 million tiny mirrors. Each mirror is attached to an electronically driven hinge that controls the amount of colored light that is reflected from

BrilliantColor™

BrilliantColor from Texas Instruments is a multi-color processing technology that produces vibrant images. BrilliantColor technology uses up to six colors, instead of just the three primary colors, red, green and blue, to improve color accuracy and brightens secondary colors.

3D Ready

A projector that is 3D Ready can accept a 120Hz frame-sequential 3D signal from a computer. These projectors are not compatible with the HDMI 1.4 3D specification used on 3D Blu-ray players and set-top boxes. 3D ready uses DLP Link Technology from Texas Instruments.

HDMI

HDMI (High Definition Multimedia Interface) is an uncompressed, all-digital audio/video interface that supports audio/video sources such as a set-top box, DVD player, A/V receiver, and video monitors such as a digital projector or digital television (DTV). HDMI is backward compatiable with DVI 1.0 specification and supports HDCP.

Related Products

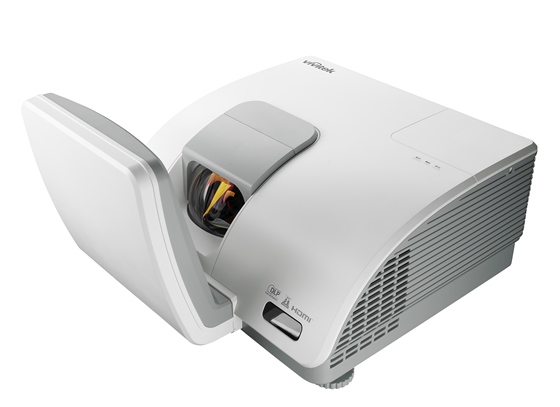

D795WT

WXGA (1280 x 800)

3000 ANSI Lumens

C.R.: 2,500:1

T.R.: 0.19:1

RJ45: Yes

9 kg

View details

Native Resolution

XGA (1024 x 768)

Brightness

3000 ANSI Lumens

Contrast Ratio

15,000:1

Max. Resolution

UXGA (1600 x 1200) @60Hz

Native Aspect Ratio

4:3

Lamp Life and Type

4,500 / 6,000 Hours (Boost / Std. Mode), 190W/160W

Display Type

Single chip DLP® Technology by Texas Instruments

Chip Size

0.55” DMD

Throw Ratio

0.6:1

Image Size (Diagonal)

41" - 328"

Projection Distance

0.5 - 4 m

Projection Lens

F=2.7, f = 6.82mm

Zoom Ratio

Fixed Lens

Offset

128%

Speakers

10W

Video Compatibility

SDTV(480i, 576i), EDTV (480p, 576p), HDTV (720p, 1080i/p), NTSC (M, 3.58/4.43 MHz), PAL (B, D, G, H, I, M, N), SECAM (B, D, G, K, K1, L)

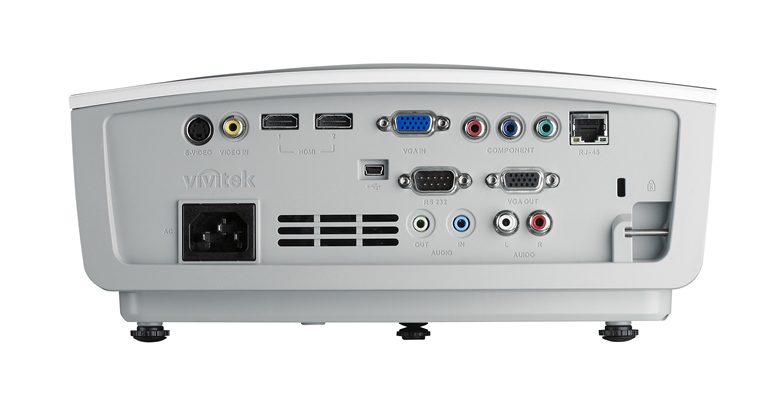

I/O Connection Ports

VGA-In (15pin D-Sub), HDMI Number of Ports, HDMI Version, S-Video, Composite Video, Audio-In (RCA), Audio-In (Mini-Jack), VGA-Out (15pin D-Sub), Audio-Out (Mini-Jack), RJ45, RS-232

Dimensions (W x D x H)

285 x 261 x 121.8 mm

Weight

2,7 kg

Noise Level

32dB/35dB (Std. / Boost Mode)

Power

Supply: AC 100-240V, 50/60Hz Consumption: 200 W (Std. Mode), 240W (Boost Mode), <0.5W (Standby Mode)

Wireless

Yes

Spare Lamp P/N

5811117577-SVV

Remote Control P/N

5041818400

Standard Accessories

VGA Cable, User Manual (CD), Lens Cap, Carrying Case, Quick Start Guide, Warranty Card (by region), Remote Controller (with battery), AC Power Cord

Optional Accessories

Spare Lamp P/N: 5811117577-SVV , Remote Control P/N: 5041818400

Warranty

Standard Warranty, Education Warranty

UPC Code

814964 335463

Replacement Lamp

Power: 190 W
Part number: 5811117577-SVV

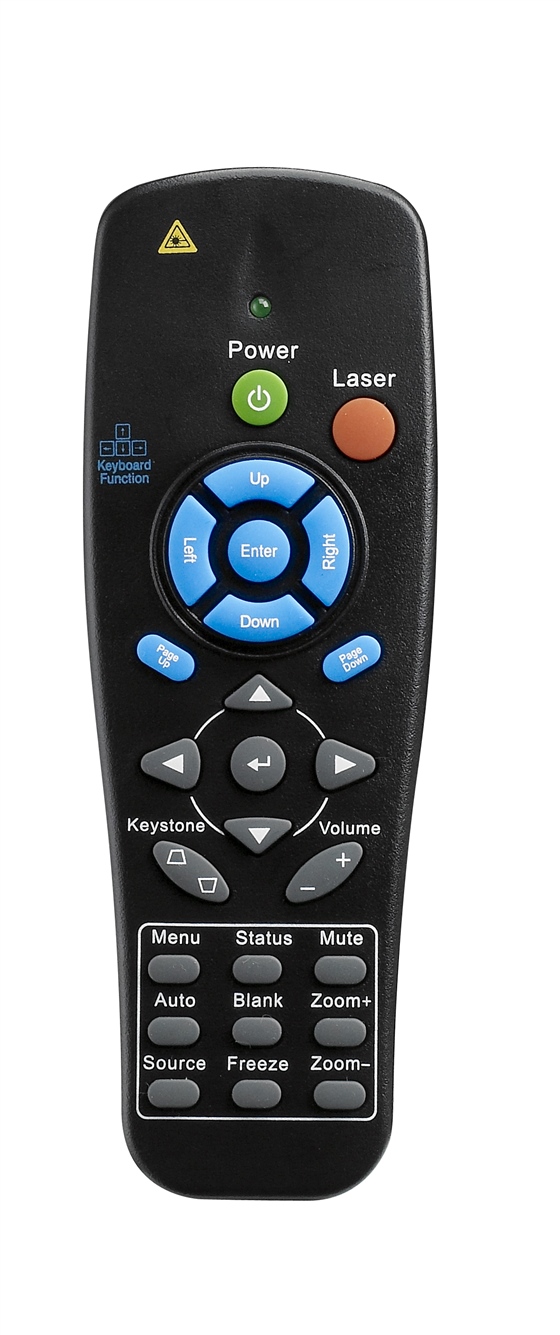

IR Remote Control

Description: Remote Control Full Function 27 Keys
Part number: 5041818400

Vivitek DataSheet

Vivitek D871ST Datasheet English

Vivitek Projector Distance Calculator v2.0

A =

4:3 16:10 16:9

cm inch

Note on using the projector distance planning calculator and tips for projector installation:
Calculator accuracy +/-5%. The calculator is designed to help you plan your installation and find the right projector. It is not designed to provide exact dimensions. When calculating the throw distance, bear in mind that the distance is measured from the front of the lens to the projection surface, except for Ultra Short Throw projectors with a mirror system. Where possible, attempt to position the projector in the middle of the zoom range , which is where the optics is optimized for. Try to avoid the extreme outer boundaries as the projector lenses has variance and performance tolerances that could make the screen not being filled, or the image being larger than the screen, caused by small variances in the optical systems. If you need to be at the extreme outer boundaries, we recommend that you order the projector and test the actual distance in your environment before fixing any mounting parts to the wall or ceiling.
