DLP® Technology
DLP (Digital Light Processing) is a display technology from Texas Instruments (TI). The technology inside is often referred to as DMD (Digital Micro-Mirrors). It consists of an array of mirrors where each mirror represents a pixel element. For example, a high-definition DLP projector or rear projector with 1920 x 1080 pixel resolution would have over 2 million tiny mirrors. Each mirror is attached to an electronically driven hinge that controls the amount of colored light that is reflected from
BrilliantColor™
BrilliantColor from Texas Instruments is a multi-color processing technology that produces vibrant images. BrilliantColor technology uses up to six colors, instead of just the three primary colors, red, green and blue, to improve color accuracy and brightens secondary colors.
3D Ready
A projector that is 3D Ready can accept a 120Hz frame-sequential 3D signal from a computer. These projectors are not compatible with the HDMI 1.4 3D specification used on 3D Blu-ray players and set-top boxes. 3D ready uses DLP Link Technology from Texas Instruments.
HDTV
High-Definition Television. Generic term that indicates a higher resolution format than previous standards. At present, denotes anything higher than a 480p signal. Most common formats are 720p, 1080i and 1080p.| Native Resolution | WXGA (1280 x 800) |
| Brightness | 3000 ANSI Lumens |
| Contrast Ratio | 2,500:1 |
| Max. Resolution | UXGA (1600 x 1200) @60Hz |
| Native Aspect Ratio | 16:10 |
| Lamp Life and Type | 4,000 / 6,000 Hours (Boost / Std. Mode), 220W |
| Display Type | Single chip DLP® Technology by Texas Instruments |
| Chip Size | 0.65” DMD |
| Throw Ratio | 0.19:1 |
| Image Size (Diagonal) | 86.7" - 97" |
| Projection Distance | 22.4+/-10 mm ~58.7+/-10 mm |
| Projection Lens | Manual Focus |
| Zoom Ratio | Fixed Lens |
| Offset | 342mm - 368.3 mm (+/- 50mm) |
| Speakers | 10W |
| Video Compatibility | SDTV(480i, 576i), EDTV (480p, 576p), HDTV (720p, 1080i/p), NTSC (M, 3.58/4.43 MHz), PAL (B, D, G, H, I, M, N), SECAM (B, D, G, K, K1, L) |

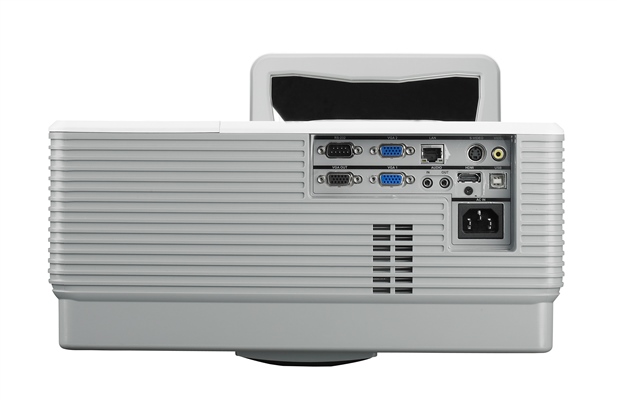

| I/O Connection Ports | VGA-In (15pin D-Sub), HDMI Number of Ports, HDMI Version, S-Video, Composite Video, Audio-In (Mini-Jack), VGA-Out (15pin D-Sub), Audio-Out (Mini-Jack), RJ45, RS-232 |
| Dimensions (W x D x H) | 354 x 319 x 157mm (not including mirror) |
| Weight | 9 kg |
| Noise Level | 27dB/29dB (Std. / Boost Mode) |
| Power | Supply: AC 100-240V, 50/60Hz Consumption: 240W (Std. Mode), 290W (Boost Mode), <1W (Standby Mode) |
| 3D Ready(DLP link, PC+Video) | Yes |
| Spare Lamp P/N | 5811116635-SU |
| Universal Wall Mount (T/R 0.2) | 3900228100 |
| Remote Control P/N | No |
| Standard Accessories | VGA Cable, User Manual (CD), Lens Cap, Quick Start Guide, Remote Controller (with battery) |
| Optional Accessories | Spare Lamp P/N: 5811116635-SU , Universal Wall Mount (T/R 0.2) |
| Warranty | Standard Warranty, Education Warranty |
Power: 220 W
Part number: 5811116635-SU
