Qumi Q7 Plus

High Brightness HD LED Projector

Where to buy

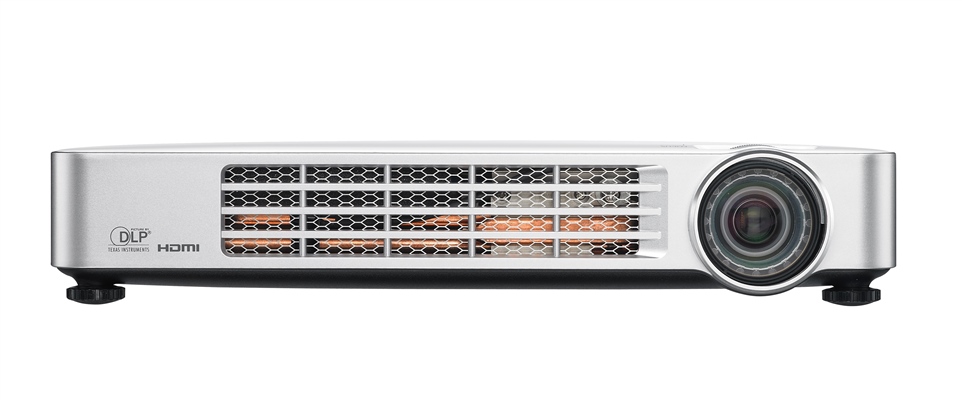

Vivitek Qumi Q7 Front HiRes
OVERVIEW
SPECIFICATIONS
IMAGE GALLERY
DOCUMENTATION
DISTANCE CALCULATOR

Picture Perfect

The Qumi Q7 Plus is a feature-rich LED HD projector that delivers unrivalled multimedia capability in a portable format. Weighing in at just 1.4kg, and with a super-slim profile, Q7 Plus is the ideal companion for the business traveller or home entertainment enthusiast. Q7 Plus is compatible with a variety of devices including digital cameras, laptops, smart phones, tablets and more. HD picture quality, brightness of 1000 ANSI Lumen and 30,000:1 contrast ratio, guarantees a projected image of up to 107” (diagonal) and comparative performance with a standard meeting room projector. With the added impact of portability, Q7 Plus leaves a lasting impression.
Vivitek Qumi Q7 Combo HiRes
Vivitek Qumi Q7 IO Ports HiRes

Key features

  • Up to 1000 ANSI Lumens of brightness with a 30,000:1 contrast ratio
  • LED light source with up to 30,000 hours of operation
  • High definition (HD) resolution with large widescreen image projection up to 107”
  • Direct 3D and 2D-3D conversion through HDMI
  • Built-in MS Office® and Adobe™ PDF document viewer
  • Multimedia player for playback of audio, photo and video files
  • Embedded web browser* for surfing the Internet (*Wireless dongle required)
  • Ability to wirelessly* project video, photos, websites and more over a wireless LAN
  • MHL device compatibility for streaming of video and audio content from a compatible mobile device
  • USB slot and 4 GB of onboard memory for additional content and memory expansion
BrilliantColor™

BrilliantColor™

BrilliantColor from Texas Instruments is a multi-color processing technology that produces vibrant images. BrilliantColor technology uses up to six colors, instead of just the three primary colors, red, green and blue, to improve color accuracy and brightens secondary colors.
3D Ready

3D Ready

A projector that is 3D Ready can accept a 120Hz frame-sequential 3D signal from a computer. These projectors are not compatible with the HDMI 1.4 3D specification used on 3D Blu-ray players and set-top boxes. 3D ready uses DLP Link Technology from Texas Instruments.
HDTV

HDTV

High-Definition Television. Generic term that indicates a higher resolution format than previous standards. At present, denotes anything higher than a 480p signal. Most common formats are 720p, 1080i and 1080p.
HDMI

HDMI

HDMI (High Definition Multimedia Interface) is an uncompressed, all-digital audio/video interface that supports audio/video sources such as a set-top box, DVD player, A/V receiver, and video monitors such as a digital projector or digital television (DTV). HDMI is backward compatiable with DVI 1.0 specification and supports HDCP.
Native Resolution WXGA (1280 x 800)
Brightness 1000 ANSI Lumens
Contrast Ratio 30,000:1
Max. Resolution UXGA
Native Aspect Ratio 16:10
Lamp Life and Type 30,000 Hours LED
Display Type Single chip DLP® Technology by Texas Instruments
Chip Size DMD
Throw Ratio 1.3 - 1.43 : 1
Image Size (Diagonal) 29" - 107"
Projection Distance 0.8 - 3 m
Zoom Ratio 1.1x
Offset 100%
Speakers 2W x 2 (Stereo)
Video Compatibility SDTV(480i, 576i), EDTV (480p, 576p), HDTV (720p, 1080i/p), NTSC (M, 3.58/4.43 MHz), PAL (B, D, G, H, I, M, N), SECAM (B, D, G, K, K1, L)
I/O Connection Ports VGA-In (15pin D-Sub), HDMI Number of Ports, HDMI Version, Composite Video, Audio-In (RCA), Audio-Out (Mini-Jack), USB type A for Display(Frame display) and JPG reader(Photo: Jpeg / Video: Mpeg4,H.264)
Dimensions (W x D x H) 238 x 180 x 40 mm
Weight 1.4 kg
Noise Level 33dB/38dB (Eco-Movie / Normal-User)
Power Supply: AC 100-240V, 50/60Hz Consumption: 141W/120W (Normal/Eco Mode), <0.5W (Standby Mode)
3D Ready(DLP link, PC+Video) Yes
2D->3D Yes
Wireless Yes
Remote Control P/N No
Standard Accessories VGA Cable, HDMI Cable, HDMI-MHL Cable, User Manual (CD), Lens Cap, Carrying Case, Quick Start Guide, Warranty Card (by region), Remote Controller (with battery), AC Power Cord
Warranty Standard Warranty
Vivitek Qumi Q7 Front HiRes
Vivitek Qumi Q7 FrontTop HiRes
Vivitek Qumi Q7 IO Ports HiRes
Vivitek Qumi Q7 LeftHero HiRes
Vivitek Qumi Q7 RightHero HiRes
Vivitek Qumi Q7 Top HiRes
Vivitek Qumi Q7 Front HiResWhite
Vivitek Qumi Q7 FrontTop HiResWhite
Vivitek Qumi Q7 IO Ports HiResWhite
Vivitek Qumi Q7 LeftHero HiResWhite
Vivitek Qumi Q7 RightHero HiResWhite
Vivitek Qumi Q7 Top HiResWhite
Vivitek Qumi Q7 Combo HiRes
Vivitek Qumi Q7 Combo2 HiRes

IR Remote Control

QUMI Q5 Q7RM(0).png

Description: Remote Control 15 Keys
Part number: No

Vivitek Projector Distance Calculator v2.0

»



>




A
A =

4:3 16:10 16:9

cm inch
Note on using the projector distance planning calculator and tips for projector installation:
Calculator accuracy +/-5%. The calculator is designed to help you plan your installation and find the right projector. It is not designed to provide exact dimensions. When calculating the throw distance, bear in mind that the distance is measured from the front of the lens to the projection surface, except for Ultra Short Throw projectors with a mirror system. Where possible, attempt to position the projector in the middle of the zoom range , which is where the optics is optimized for. Try to avoid the extreme outer boundaries as the projector lenses has variance and performance tolerances that could make the screen not being filled, or the image being larger than the screen, caused by small variances in the optical systems. If you need to be at the extreme outer boundaries, we recommend that you order the projector and test the actual distance in your environment before fixing any mounting parts to the wall or ceiling.
