From meeting room to presentations anywhere on the road

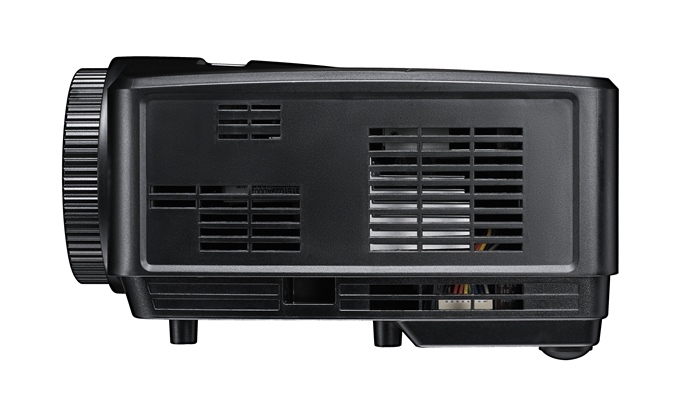

The Vivitek DX255 is a 3,500 ANSI Lumens high XGA digital projector from Vivitek. It is compact and lightweight at less than 2kg for easy portability, and it comes with a long lamp life up to 8,000 hours to keep easy of mind. , The DX255 features DLP® and BrilliantColor™ technologies to display distinct, vibrant images with its 20,000:1 sharp contrast ratio. The projector’s exceptional value is complemented by the numerous connectivities including HDMI.

Key features

DLP® technology with BrilliantColor™ for vibrant and rich picture quality
3,500 ANSI lumens of brightness and 20,000:1 contrast ratio for clear, crisp and bright presentations
XGA (1024 x 768) native resolution scalable up to a maximum 1080p (1920 x 1080) resolution
Compact and lightweight at less than 2kg for easy portability
A long lamp life up to 8,000 hours for low Total Cost of Ownership (TCO)
HDMI input for high definition content with the same high quality
Audio ready with built-in 2 watt audio speaker, audio-in and audio out ports
3D ready with 3D-Ready via DLP® Link™, IR, Blu-Ray 3D

DLP® Technology

DLP (Digital Light Processing) is a display technology from Texas Instruments (TI). The technology inside is often referred to as DMD (Digital Micro-Mirrors). It consists of an array of mirrors where each mirror represents a pixel element. For example, a high-definition DLP projector or rear projector with 1920 x 1080 pixel resolution would have over 2 million tiny mirrors. Each mirror is attached to an electronically driven hinge that controls the amount of colored light that is reflected from

BrilliantColor™

BrilliantColor from Texas Instruments is a multi-color processing technology that produces vibrant images. BrilliantColor technology uses up to six colors, instead of just the three primary colors, red, green and blue, to improve color accuracy and brightens secondary colors.

3D Ready

A projector that is 3D Ready can accept a 120Hz frame-sequential 3D signal from a computer. These projectors are not compatible with the HDMI 1.4 3D specification used on 3D Blu-ray players and set-top boxes. 3D ready uses DLP Link Technology from Texas Instruments.

HDMI

HDMI (High Definition Multimedia Interface) is an uncompressed, all-digital audio/video interface that supports audio/video sources such as a set-top box, DVD player, A/V receiver, and video monitors such as a digital projector or digital television (DTV). HDMI is backward compatiable with DVI 1.0 specification and supports HDCP

Native Resolution

XGA (1024 x 768)

Brightness

3,500 ANSI Lumens

Contrast Ratio

20,000:1

Max. Supported Resolution

1080p (1920 x1080) @60Hz

Native Aspect Ratio

4:3

Lamp Life and Type

4,000/6,000/8,000 Hours (Normal/Eco./Dynamic Eco. Mode), 203W/170W

Display Type

Single chip DLP® Technology by Texas Instruments

Chip Size

0.55” DMD

Throw Ratio

1.97 - 2.17:1

Image Size (Diagonal)

27" - 290"

Projection Distance

1.2 - 11m

Projection Lens

F = 2.51 - 2.69, f = 21.95 - 24.18mm

Zoom Ratio

1.1x

Offset (Based on Full Image Height)

115%

Keystone Correction

Vertical +/-40°

Speakers

Video Compatibility

SDTV (480i, 576i), EDTV (480p, 576p), HDTV (720p, 1080i/p), NTSC (M, 3.58/4.43 MHz), PAL (B, D, G, H, I, M, N), SECAM (B, D, G, K, K1, L)

I/O Connection Ports

VGA-In (15pin D-Sub), HDMI, Composite Video, Audio-In (Mini-Jack), Audio-Out (Mini-Jack), RS-232, USB miniB (Service)

Dimensions (W x D x H)

285 x 193.5 x 111.5mm

Weight

1.97 kg

Noise Level

30dB/28dB (Normal/Eco. Mode)

Power

Supply: AC 100-240V, 50/60Hz Consumption: 220W (Eco. Mode), 260W (Normal Mode), <0.5W (Standby)

3D Ready(DLP link, PC+Video)

Yes

Standard Accessories

VGA Cable, User Manual (CD), Quick Start Guide, Warranty Card (by region), Remote Controller (with battery), AC Power Cord

Optional Accessories

Spare Lamp, Remote Control, Carrying Case P/N

Replacement Lamp

LB04N D05A Lamp Photo 1 D510 D508 D511 D509 D513W VK508 VK509

Power: 190W
Part number

IR Remote Control

Description: Remote Control Key Card 15 Keys
Part number: 5041827300

Vivitek DataSheet

Vivitek DX255 Datasheet English

Vivitek User manuals

Vivitek DX255 User Manual English

Vivitek Projector Distance Calculator v2.0

A =

4:3 16:10 16:9

cm inch

Note on using the projector distance planning calculator and tips for projector installation:
Calculator accuracy +/-5%. The calculator is designed to help you plan your installation and find the right projector. It is not designed to provide exact dimensions. When calculating the throw distance, bear in mind that the distance is measured from the front of the lens to the projection surface, except for Ultra Short Throw projectors with a mirror system. Where possible, attempt to position the projector in the middle of the zoom range , which is where the optics is optimized for. Try to avoid the extreme outer boundaries as the projector lenses has variance and performance tolerances that could make the screen not being filled, or the image being larger than the screen, caused by small variances in the optical systems. If you need to be at the extreme outer boundaries, we recommend that you order the projector and test the actual distance in your environment before fixing any mounting parts to the wall or ceiling.
