DX977-WT

High Brightness Multimedia XGA Projector

Vivitek D912HD Right Hero

Suited for installations in meeting rooms for professional usage

The Vivitek DX977WT is a high brightness multimedia digital projector. The DX977WT delivers an amazing image quality and would be perfectly suited for any large meeting room. With a brightness of 6,000 ANSI lumens, XGA resolution and an outstanding 15,000:1 contrast ratio, the projector performs outstanding. The DX977WT also features DLP Link™ and BluRay 3D functionality, Crestron® RoomView™ certification, high-efficiency lamps and an assortment of connectivity options for easy connection to a variety of multimedia devices.
VIVITEK D912HD front 011 m
Vivitek D912HD IO Ports

Key features

  • 3500 ANSI Lumens of brightness with a 5000:1 contrast ratio
  • DLP® and BrilliantColor™ technologies from Texas Instruments
  • Connectivity options include: HDMI, DisplayPort, VGA-in (2x), VGA-Out, composite video, component video, S-video
  • Network-ready for integration and system administration via RJ45
  • Direct 3D over HDMI
  • Top-loading, sliding cover for quick and easy lamp replacement
  • Keypad lock prevents accidental system adjustments
DLP® Technology

DLP® Technology

DLP (Digital Light Processing) is a display technology from Texas Instruments (TI). The technology inside is often referred to as DMD (Digital Micro-Mirrors). It consists of an array of mirrors where each mirror represents a pixel element. For example, a high-definition DLP projector or rear projector with 1920 x 1080 pixel resolution would have over 2 million tiny mirrors. Each mirror is attached to an electronically driven hinge that controls the amount of colored light that is reflected from
BrilliantColor™

BrilliantColor™

BrilliantColor from Texas Instruments is a multi-color processing technology that produces vibrant images. BrilliantColor technology uses up to six colors, instead of just the three primary colors, red, green and blue, to improve color accuracy and brightens secondary colors.
3D Ready

3D Ready

A projector that is 3D Ready can accept a 120Hz frame-sequential 3D signal from a computer. These projectors are not compatible with the HDMI 1.4 3D specification used on 3D Blu-ray players and set-top boxes. 3D ready uses DLP Link Technology from Texas Instruments.
HDTV

HDTV

High-Definition Television. Generic term that indicates a higher resolution format than previous standards. At present, denotes anything higher than a 480p signal. Most common formats are 720p, 1080i and 1080p.
Native Resolution XGA (1024 x 768)
Brightness 6000 ANSI Lumens
Contrast Ratio 15,000:1
Max. Supported Resolution WUXGA (1920 x1200) @60Hz
Native Aspect Ratio 4:3
Lamp Life and Type 2,500/ 3,500/ 4,000 Hours (Normal /Eco/Dynamic Eco Mode) 310W/245W
Display Type Single chip DLP® Technology by Texas Instruments
Chip Size 0.7” DMD
Throw Ratio 1.43 - 2.14
Image Size (Diagonal) 27.6" – 344.6"
Projection Distance 1.2 - 10m
Projection Lens F= 2.42 - 2.97, f = 20.9 - 31.05 mm
Zoom Ratio 1.5x
Lens Shift ( Based on Full Image Height) Vertical:109.5% - 120%, +/- 5%
Offset (Based on Full Image Height) 112% +/- 10%
Keystone Correction Vertical +/- 30°
Speakers 3W
Video Compatibility SDTV(480i, 576i), EDTV (480p, 576p), HDTV (720p, 1080i/p), NTSC (M, 3.58/4.43 MHz), PAL (B, D, G, H, I, M, N), SECAM (B, D, G, K, K1, L)
I/O Connection Ports VGA-In (15pin D-Sub) (x2), HDMI (x2), Display Port (x1), S-Video (x1), Composite Video (x1), Audio-In (RCA) (x1), Audio-In (Mini-Jack) (x1), VGA-Out (15pin D-Sub), Audio-Out (Mini-Jack) (x1), RJ45 (x1), RS-232, 3D-Sync (x1), USB B (Service)
Dimensions (W x D x H) 332.8 x 255 x 114.6mm
Weight 3.95 kg
Noise Level 36dB/ 30dB (Normal/Eco. Mode)
Power Power Supply: AC 110-240V, 50/60Hz. Power Consumption: 370W (Normal Mode), 300W (Eco. Mode), <0.5W (Standby Mode) , <6W (LAN Standby Mode)
3D Ready(DLP link, PC+Video) Yes
Spare Lamp P/N 5811118436-SVV
Standard Accessories VGA Cable, User Manual (CD), Lens Cap, Carrying Case, Quick Start Guide, Warranty Card (by region), Remote Controller (with battery), AC Power Cord
Optional Accessories Spare Lamp P/N: 5811118436-SVV
Warranty Standard Warranty: 3 years projector / 1 year on lamp or 1000 hours whichever comes first
UPC Code 813097 021380

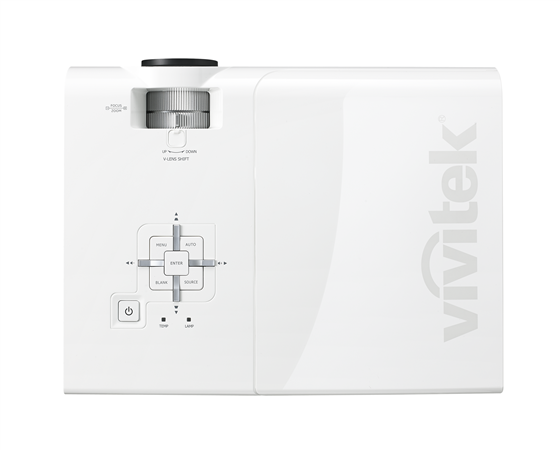

Vivitek D912HD Top
Vivitek D912HD Right Hero

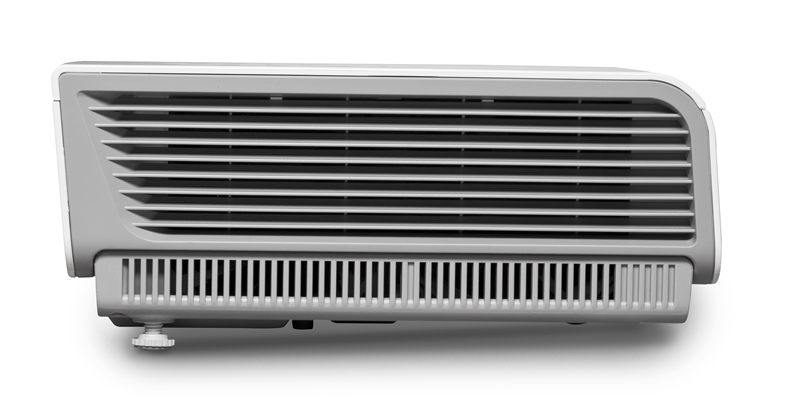

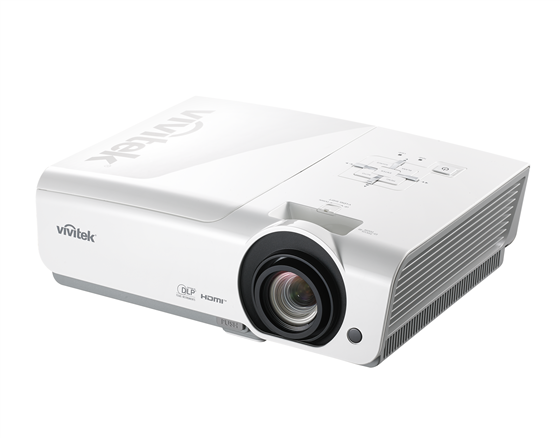

Vivitek D912HD LeftHero

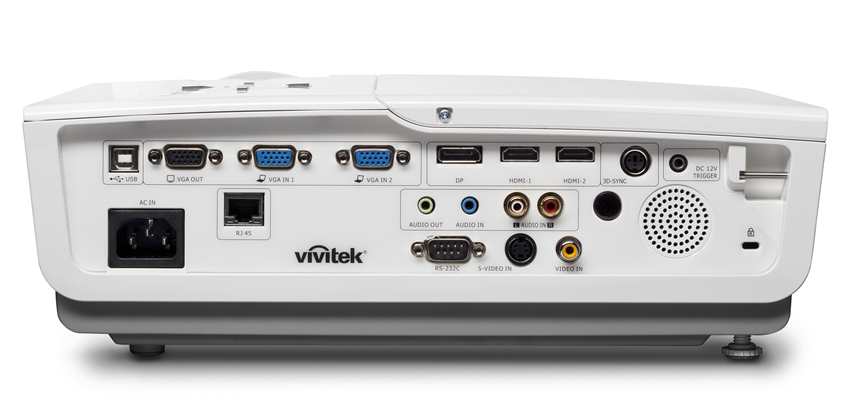

Vivitek D912HD IO Ports
Vivitek D912HD Front Top
Vivitek D912HD BackTop

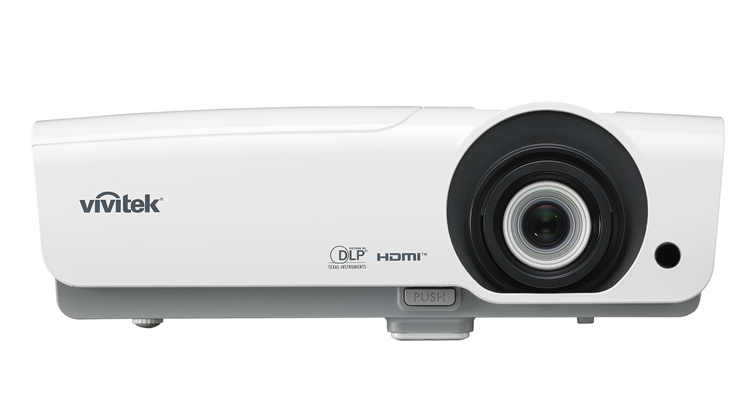

VIVITEK D912HD front 011 m

IR Remote Control

VivitekD7 D8 D9 D5000 Series

Power: 310 W
Part number: No

Vivitek Projector Distance Calculator v2.0



>




A
A =
Note on using the projector distance planning calculator and tips for projector installation:
Calculator accuracy +/-5%. The calculator is designed to help you plan your installation and find the right projector. It is not designed to provide exact dimensions. When calculating the throw distance, bear in mind that the distance is measured from the front of the lens to the projection surface, except for Ultra Short Throw projectors with a mirror system. Where possible, attempt to position the projector in the middle of the zoom range , which is where the optics is optimized for. Try to avoid the extreme outer boundaries as the projector lenses has variance and performance tolerances that could make the screen not being filled, or the image being larger than the screen, caused by small variances in the optical systems. If you need to be at the extreme outer boundaries, we recommend that you order the projector and test the actual distance in your environment before fixing any mounting parts to the wall or ceiling.
