Versatile Projector

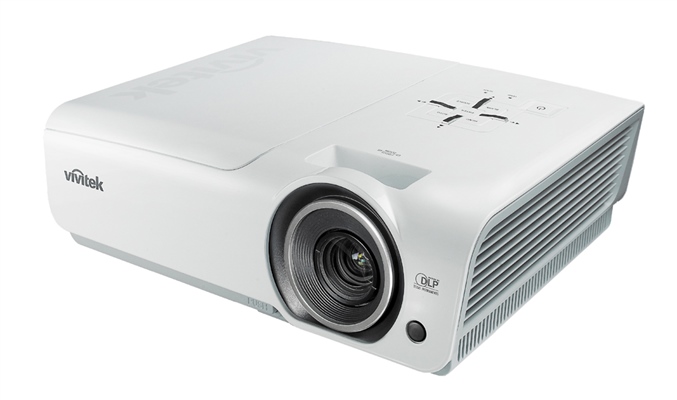

Vivitek D867 Right Hero.png

Versatility meets performance

The Vivitek D867 delivers exceptional digital images with a high degree of vibrancy due to 4,000 ANSI lumens of brightness and a contrast ratio of 5,000:1. Featuring native XGA resolution the D867 is designed for a wide variety of applications. Light weight at just over 3 kg, the D867 allows for easy transportation between different conference rooms or external meetings. For easy installation, this device offers top-loading as well as a sliding cover for quick lamp replacement. The lamp life is up to 5000 hours in Eco mode, resulting in an attractive cost of ownership. The D867 features a broad assortment of connectivity options to fully enjoy multimedia applications of any kind.
Vivitek H1180 85HD Front

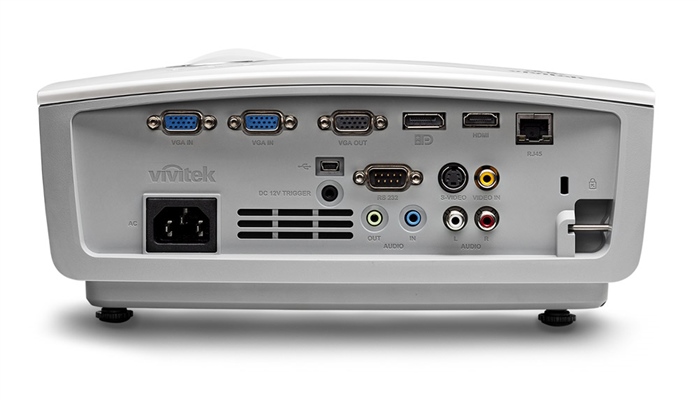

Vivitek D867 IO Ports

Key features

  • Native XGA (1024 x 768) resolution with display up to UXGA(1600 x 1200)
  • High Brightness of 4,000 ANSI lumens and high 5,000:1 Contrast ratio ensuring a crisp and sharp image
  • Assortment of connectivity options for easy connection to a variety of multimedia devices (HDMI, DisplayPort)
  • Top-loading, sliding cover for quick and easy lamp replacement
  • Built-in 10W audio speaker
  • Sealed optical engine, minimizing the impact of dust and smoke
  • Security solutions include: Kensington® security slot, security bar, keypad lock
DLP® Technology

DLP® Technology

DLP (Digital Light Processing) is a display technology from Texas Instruments (TI). The technology inside is often referred to as DMD (Digital Micro-Mirrors). It consists of an array of mirrors where each mirror represents a pixel element. For example, a high-definition DLP projector or rear projector with 1920 x 1080 pixel resolution would have over 2 million tiny mirrors. Each mirror is attached to an electronically driven hinge that controls the amount of colored light that is reflected from


BrilliantColor from Texas Instruments is a multi-color processing technology that produces vibrant images. BrilliantColor technology uses up to six colors, instead of just the three primary colors, red, green and blue, to improve color accuracy and brightens secondary colors.
3D Ready

3D Ready

A projector that is 3D Ready can accept a 120Hz frame-sequential 3D signal from a computer. These projectors are not compatible with the HDMI 1.4 3D specification used on 3D Blu-ray players and set-top boxes. 3D ready uses DLP Link Technology from Texas Instruments.


HDMI (High Definition Multimedia Interface) is an uncompressed, all-digital audio/video interface that supports audio/video sources such as a set-top box, DVD player, A/V receiver, and video monitors such as a digital projector or digital television (DTV). HDMI is backward compatiable with DVI 1.0 specification and supports HDCP.
Native Resolution XGA (1024 x 768)
Brightness 4000 ANSI Lumens
Contrast Ratio 5000:1
Max. Resolution UXGA (1600 x 1200) @60Hz
Native Aspect Ratio 4:3
Lamp Life and Type 3,000/4,000 Hours (Normal/Eco Mode), 280W/245W,Osram
Display Type Single chip DLP® Technology by Texas Instruments
Chip Size 0.55” DMD
Throw Ratio 1.6 - 1.92:1
Image Size (Diagonal) 25.6"-308"
Projection Distance 1 - 10 m
Projection Lens F#2.50 - 2.72, f = 17.81 - 22.35mm
Zoom Ratio 1.2x
Offset 128%
Speakers 10W
Video Compatibility SDTV(480i, 576i), EDTV (480p, 576p), HDTV (720p, 1080i/p), NTSC (M, 3.58/4.43 MHz), PAL (B, D, G, H, I, M, N), SECAM (B, D, G, K, K1, L)
I/O Connection Ports VGA-In (15pin D-Sub), HDMI Number of Ports, HDMI Version, Display Port, S-Video, Composite Video, Audio-In (RCA), Audio-In (Mini-Jack), VGA-Out (15pin D-Sub), Audio-Out (Mini-Jack), RJ45, 12v Trigger, Trigger Port Type, RS-232
Dimensions (W x D x H) 285 x 261 x 121.8 mm
Weight 3,15 kg
Noise Level 39dB/37dB (Normal/Eco Mode)
Power Supply: AC 100-240V, 50/60Hz Consumption: 350W (Normal Mode) 300W (Eco. Mode) <0.5W (Standby Mode)
3D Ready(DLP link, PC+Video) Yes
Standard Accessories VGA Cable, User Manual (CD), Lens Cap, Carrying Case, Quick Start Guide, Warranty Card (by region), Remote Controller (with battery), AC Power Cord
Optional Accessories Spare Lamp, Remote Control
Warranty Standard Warranty
Vivitek D867 Right Hero.png

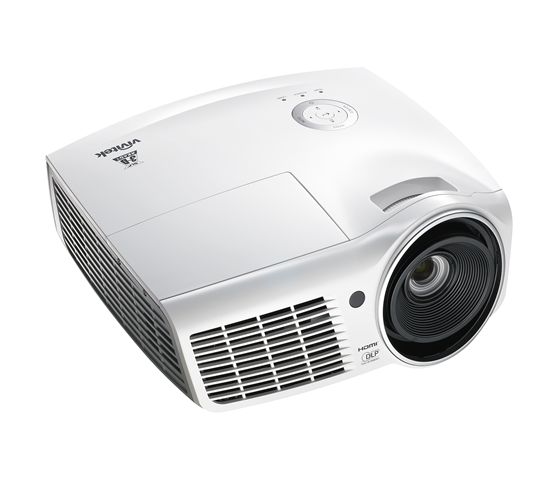

Vivitek D867 LeftHero.png
Vivitek D867 IO Ports

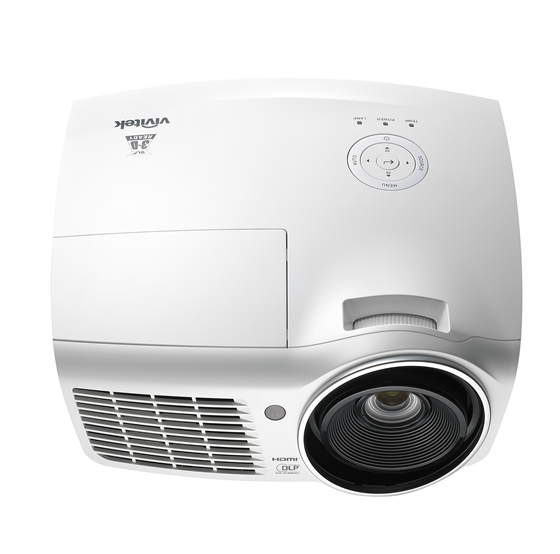

Vivitek D867 Front Top.png
Vivitek D867 BackTop.png

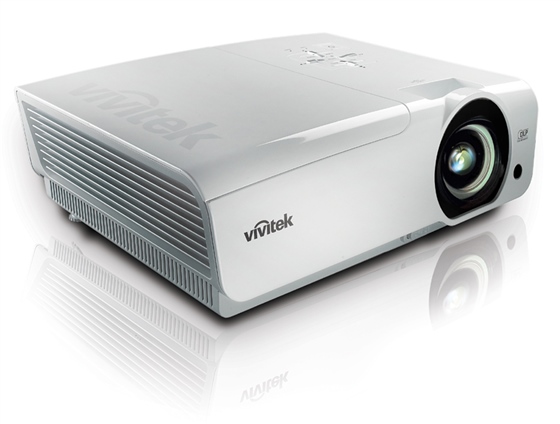

Vivitek D867 LeftHero LowRes
Vivitek D867 RightHero HiRes
Vivitek H1180 85HD Front

Replacement Lamp

D851 D1185

Power: 280
Part number: 5811118924-SVV

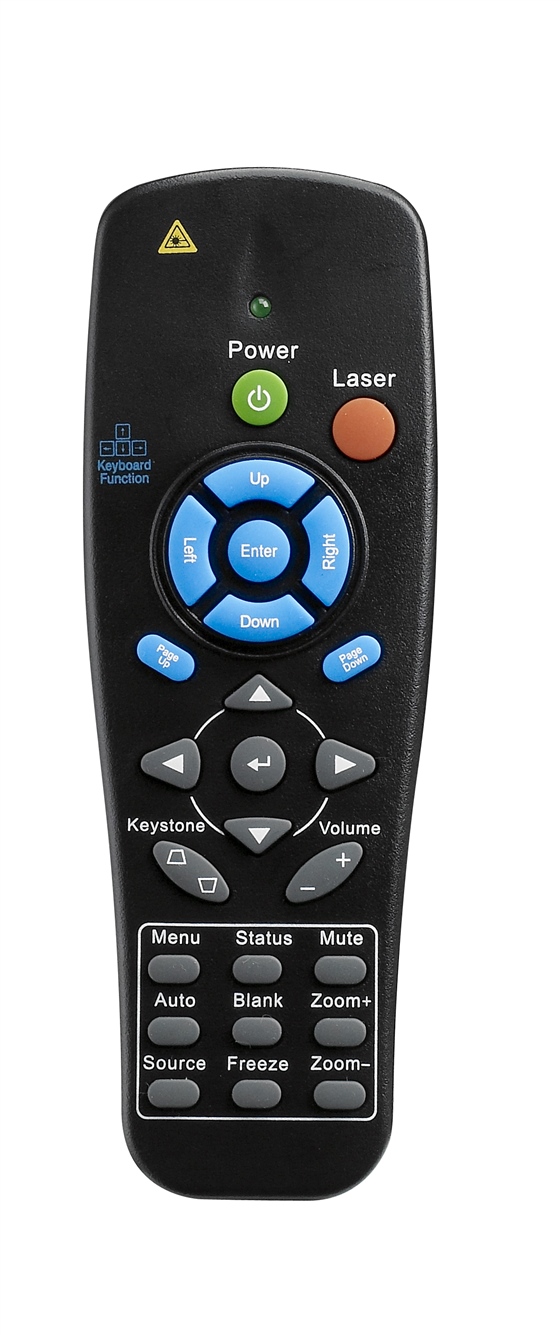

IR Remote Control

VivitekD7 D8 D9 D5000 Series

Description: Remote Control Full Function 27 Keys
Part number: 5041818400

Vivitek DataSheet

Vivitek Projector Distance Calculator v2.0




A =
Note on using the projector distance planning calculator and tips for projector installation:
Calculator accuracy +/-5%. The calculator is designed to help you plan your installation and find the right projector. It is not designed to provide exact dimensions. When calculating the throw distance, bear in mind that the distance is measured from the front of the lens to the projection surface, except for Ultra Short Throw projectors with a mirror system. Where possible, attempt to position the projector in the middle of the zoom range , which is where the optics is optimized for. Try to avoid the extreme outer boundaries as the projector lenses has variance and performance tolerances that could make the screen not being filled, or the image being larger than the screen, caused by small variances in the optical systems. If you need to be at the extreme outer boundaries, we recommend that you order the projector and test the actual distance in your environment before fixing any mounting parts to the wall or ceiling.
