D5190HD

1080p Full HD High Brightness Installation Projector

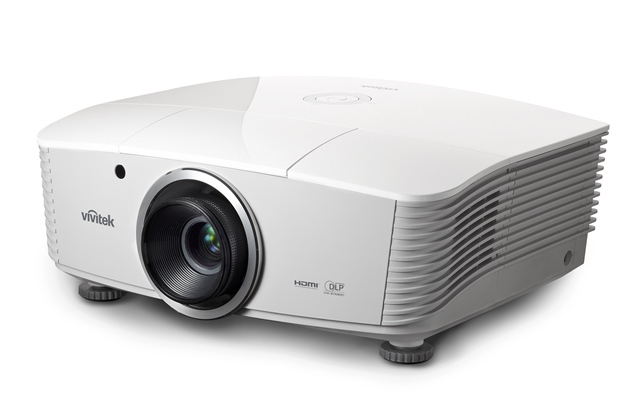

Vivitek D5190HD White RightHero HiRes

Combines high performance and rich functionality with simple installation and handling

The D5190HD offers a range of features that make it the ideal projector choice for the professional installation market. In addition to 4700 ANSI lumens of brightness, the 1080p Full HD image resolution delivers excellent fidelity and large screen area for simultaneous display of video conferencing, presentations, and display of charts and graphs. With the installer in mind the D5190HD features horizontal and vertical lens shift as well as a centered lens for easy installation and maintenance. The projector has three interchangeable lens options for flexible positioning in regards to varying screen sizes or projection distance requirements and a comprehensive range of connectivity options

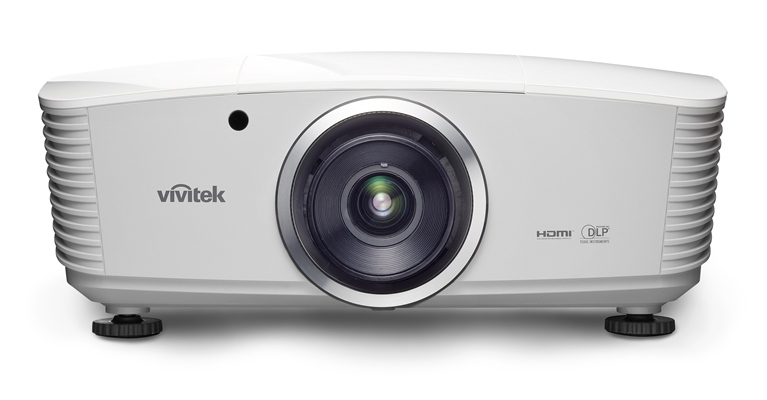

Vivitek  D5190HD  White Front HiRes

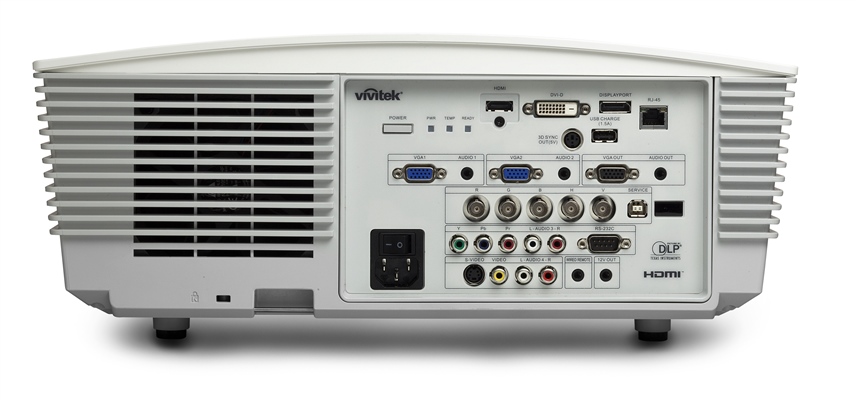

Vivitek D5190HD White IO Ports HiRes

Key features

  • Full HD 1080p resolution (1920 x 1080)
  • 4700 ANSI Lumens and 2000:1 contrast ratio
  • DLP® and BrilliantColor™ technologies for durable image quality
  • Centered lens for easy planning & installation
  • Three Interchangeable lens options for greater installation flexibility
  • Horizontal and vertical lens shift, (also on fixed, short lens)
  • Connectivity options including: HDMI v1.4, DisplayPort, VGA-Out, RJ45 and RS-232
  • DisplayPort connector for digital video signals
  • Built-in 12V trigger for screen and/or blinds control
  • USB A 5V/1.5A for external peripherals such as wireless modules
  • Audio ready with 2x3W stereo speakers
DLP® Technology

DLP® Technology

DLP (Digital Light Processing) is a display technology from Texas Instruments (TI). The technology inside is often referred to as DMD (Digital Micro-Mirrors). It consists of an array of mirrors where each mirror represents a pixel element. For example, a high-definition DLP projector or rear projector with 1920 x 1080 pixel resolution would have over 2 million tiny mirrors. Each mirror is attached to an electronically driven hinge that controls the amount of colored light that is reflected from
BrilliantColor™

BrilliantColor™

BrilliantColor from Texas Instruments is a multi-color processing technology that produces vibrant images. BrilliantColor technology uses up to six colors, instead of just the three primary colors, red, green and blue, to improve color accuracy and brightens secondary colors.
3D Ready

3D Ready

A projector that is 3D Ready can accept a 120Hz frame-sequential 3D signal from a computer. These projectors are not compatible with the HDMI 1.4 3D specification used on 3D Blu-ray players and set-top boxes. 3D ready uses DLP Link Technology from Texas Instruments.
HDTV

HDTV

High-Definition Television. Generic term that indicates a higher resolution format than previous standards. At present, denotes anything higher than a 480p signal. Most common formats are 720p, 1080i and 1080p.



Native Resolution 1080p (1920 x 1080)
Brightness 4700 ANSI Lumens
Contrast Ratio 2,000:1
Max. Resolution WUXGA (1920 x 1200) @60Hz
Native Aspect Ratio 16:9
Lamp Life and Type 1,500/3,500 hours (Normal/Eco. Mode) 370W / 280W
Display Type Single chip DLP® Technology by Texas Instruments
Chip Size 0.65
Throw Ratio 1.54 - 1.93:1 (Std lens)
Image Size (Diagonal) 36" - 211" (Std lens)
Projection Distance 1.5 - 7 m
Projection Lens F = 2.46 - 2.56 f = 22.82 - 28.49 mm
Zoom Ratio 1.25x (Std lens)
Lens Shift Range Vertical: -20% / +110%, Horizontal: +/- 5%
Offset Manual Lens Shift
Automatic Keystone Correction n/a
Speakers 3W x 2 (Stereo)
Video Compatibility SDTV (480i, 576i), EDTV (480p, 576p), HDTV (720p, 1080i/p), NTSC (M, 3.58/4.43 MHz), PAL (B, D, G, H, I, M, N), SECAM (B, D, G, K, K1, L)
I/O Connection Ports VGA-In (15pin D-Sub), HDMI Number of Ports, HDMI Version, Display Port, DVI-D, Component (5 BNC) (RGBHV), Component (YPbPr RCA x 3), S-Video, Composite Video, Audio-In (RCA), Audio-In (Mini-Jack), VGA-Out (15pin D-Sub), Audio-Out (Mini-Jack), RJ45, IP Telnet Capable Over RJ-45, 12v Trigger, Trigger Port Type, RS-232, 3D-Sync Out, USB A, Remote Jack(wire remote)
Dimensions (W x D x H) 431 x 345 x 181 mm
Weight 8,6 kg
Noise Level 42dB/37dB (Normal/Eco. Mode)
Power Supply: AC 100 - 240V Consumption:450W (Normal Mode), 340W (Eco. Mode), Standby <0.5W
3D Ready(DLP link, PC+Video) Yes
2D->3D No
Standard Accessories VGA Cable, User Manual (CD), Lens Cap, Quick Start Guide, Warranty Card (by region), Remote Controller (with battery), AC Power Cord
Optional Accessories Spare Lamp, SVV LAMP SERVICE H7T 370W ASSY-NON-TILT 5811118482-SVV LAMP SERVICE H7T E20.9-370W-TILT , Remote Control
Warranty Standard Warranty
Vivitek  D5190HD  White Front HiRes
Vivitek D5190HD White IO Ports HiRes

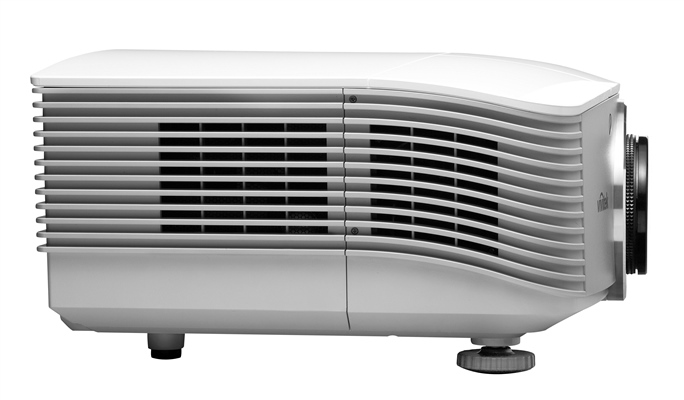

Vivitek D5190HD  White Left HiRes

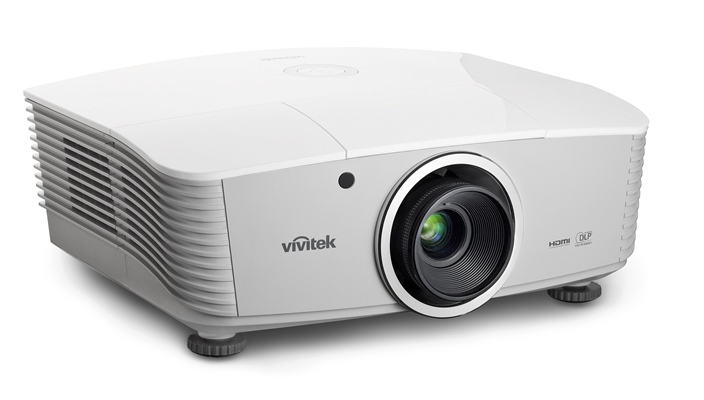

Vivitek D5190HD  White LeftHero HiRes

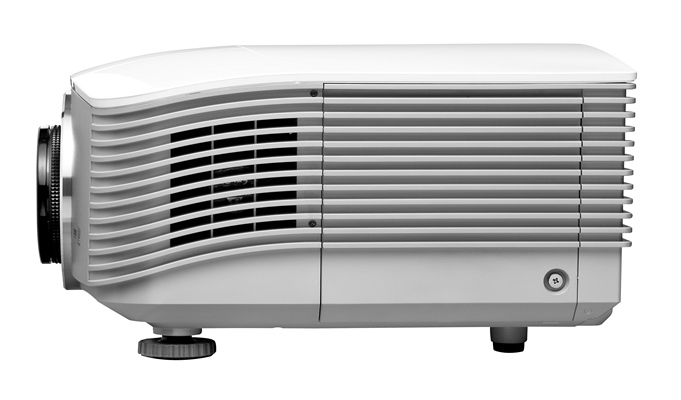

Vivitek D5190HD  White Right HiRes
Vivitek D5190HD White RightHero HiRes

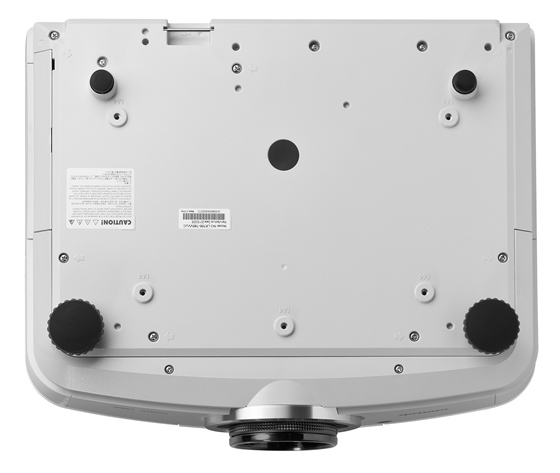

Vivitek D5000White Bottom HiRes

Lens Options

Standard Zoom D5000 D50180 D5185 D5280U DH5085 LR

Description: Standard Lens
Throw Ratio: 1.54 - 1.93:1
Part number: 5811116223-SU

Fixed Short D5000 D50180 D5185 D5280U DH5085LR

Description: Fixed Wide Short
Throw Ratio: 0.77:1
Part number: 5811116225-SU

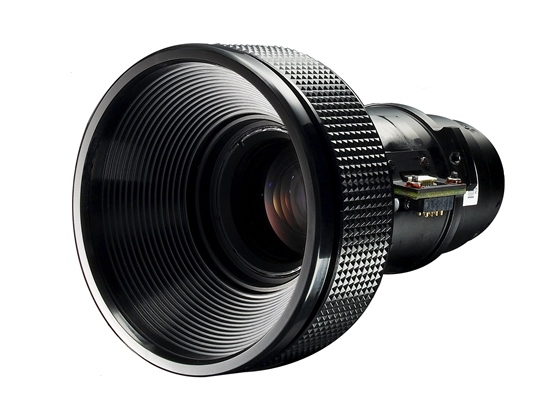

Medium Zoom D5000 D50180 D5185 D5280U DH5085

Description: Zoom Middle
Throw Ratio: 1.93 - 2.89:1
Part number: 5811116224-SU

Replacement Lamp

Lamp Photo 1 D5180HD D5185HD

Power: 370
Part number: 5811118452-SVV LAMP SERVICE H7T 370W ASSY-NON-TILT 5811118482-SVV LAMP SERVICE H7T E20.9-370W-TILT

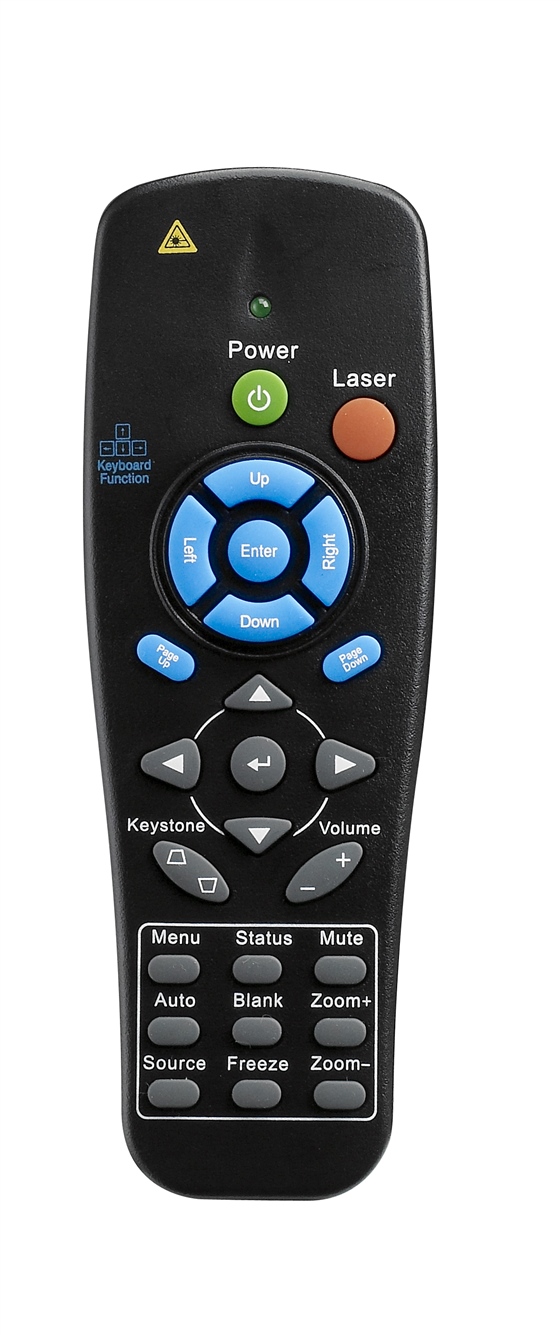

IR Remote Control

VivitekD7 D8 D9 D5000 Series

Description: Remote Control Full Function with Jack Connector
Part number: 5041825300

Vivitek Projector Distance Calculator v2.0



>




A
A =
Note on using the projector distance planning calculator and tips for projector installation:
Calculator accuracy +/-5%. The calculator is designed to help you plan your installation and find the right projector. It is not designed to provide exact dimensions. When calculating the throw distance, bear in mind that the distance is measured from the front of the lens to the projection surface, except for Ultra Short Throw projectors with a mirror system. Where possible, attempt to position the projector in the middle of the zoom range , which is where the optics is optimized for. Try to avoid the extreme outer boundaries as the projector lenses has variance and performance tolerances that could make the screen not being filled, or the image being larger than the screen, caused by small variances in the optical systems. If you need to be at the extreme outer boundaries, we recommend that you order the projector and test the actual distance in your environment before fixing any mounting parts to the wall or ceiling.
