Professional-Grade Home Cinema Projector for the Consumer Enthusiast

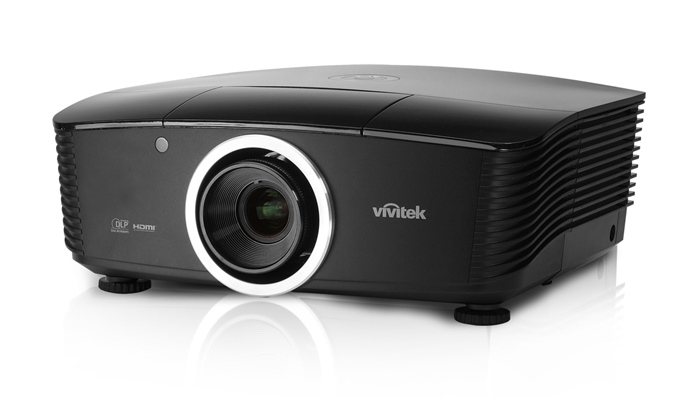

VivitekD5185HD RightHero HiRes

Remarkable home theatre experience

The Vivitek H5095 1080p home cinema projector utilizes the latest video processing technologies to create remarkable picture quality. With ISFccc video calibration capabilities, the H5095 delivers amazing video performance and digital images to the screen. From the Pixelworks™ processor to manual lens shift functions, the Vivitek H5095 is the projector to create an authentic cinematic setting in your home.

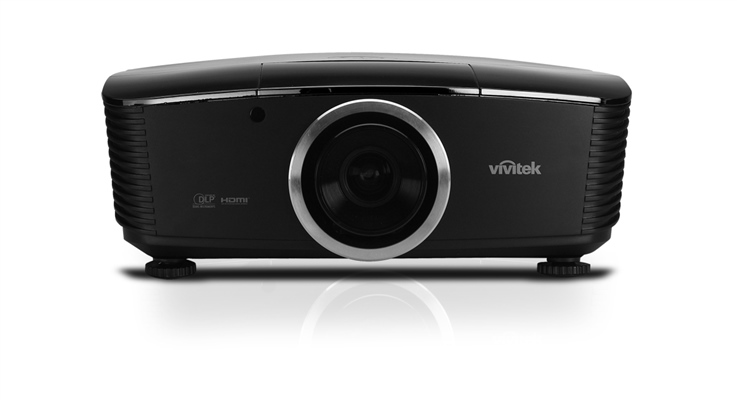

Vivitek D5185HDFront LowRes

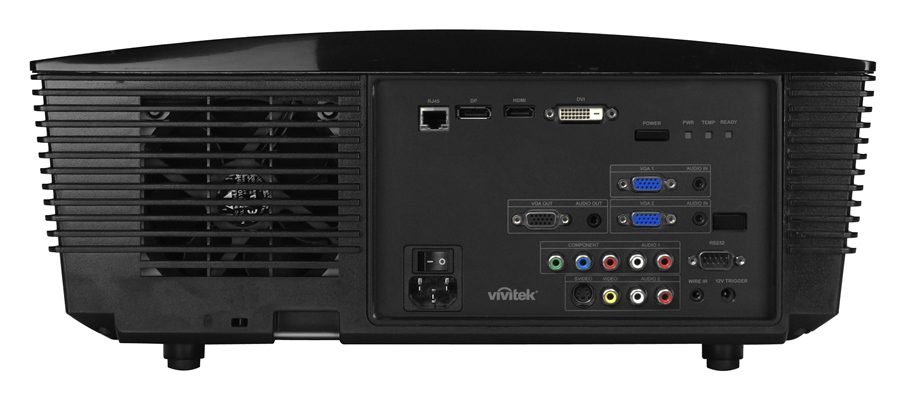

Vivitek D5185HD IO Ports LowRes

Key features

  • Native 1080p (1920x1080)
  • 2000 ANSI Lumens and 15.000:1 contrast ratio
  • ISFccc video calibration capabilities to setup viewing preferences
  • DLP® DarkChip3™ and BrilliantColor™ technologies from Texas Instruments
  • Manual lens shift (vertical/horizontal)
  • Interchangeable lens options to accommodate different home cinema settings
  • Connectivity options include: Three (3) HDMI v1.4, VGA-In x2, DisplayPort, DVID, DVI-D, Component, S-Video, Composite
  • Dynamic Black and Dynamic Iris provide greater contrast with more depth to images
  • ViviMotion engine to deliver smooth picture quality for fast action scene
DLP® Technology

DLP® Technology

DLP (Digital Light Processing) is a display technology from Texas Instruments (TI). The technology inside is often referred to as DMD (Digital Micro-Mirrors). It consists of an array of mirrors where each mirror represents a pixel element. For example, a high-definition DLP projector or rear projector with 1920 x 1080 pixel resolution would have over 2 million tiny mirrors. Each mirror is attached to an electronically driven hinge that controls the amount of colored light that is reflected from


BrilliantColor from Texas Instruments is a multi-color processing technology that produces vibrant images. BrilliantColor technology uses up to six colors, instead of just the three primary colors, red, green and blue, to improve color accuracy and brightens secondary colors.


Image science foundation calibration.


High-Definition Television. Generic term that indicates a higher resolution format than previous standards. At present, denotes anything higher than a 480p signal. Most common formats are 720p, 1080i and 1080p.
Native Resolution 1080p (1920 x 1080)
Brightness 2000 ANSI Lumens
Contrast Ratio 15,000:1
Max. Resolution WUXGA (1920 x 1200) @60Hz
Native Aspect Ratio 16:9
Lamp Life and Type 2,000/3,000 Hours (Boost/Std. Mode), 280W
Display Type Single chip DLP® Technology by Texas Instruments
Chip Size 0.65” DMD
Throw Ratio 1.54 - 1.93:1 (Std lens)
Image Size (Diagonal) 37" - 300" (Std lens)
Projection Distance 1.5 - 7 m
Projection Lens F = 2.46 - 2.56 f = 22.82 - 28.49 mm
Zoom Ratio 1.25x (Std lens)
Lens Shift Range Vertical: -40% / +120%, Horizontal: +/- 10%
Offset Manual Lens Shift
Video Compatibility SDTV (480i, 576i), EDTV (480p, 576p), HDTV (720p, 1080i/p), NTSC (M, 3.58/4.43 MHz), PAL (B, D, G, H, I, M, N), SECAM (B, D, G, K, K1, L)
I/O Connection Ports VGA-In (15pin D-Sub), HDMI Number of Ports, HDMI Version, Component (YPbPr RCA x 3), S-Video, Composite Video, 12v Trigger, RS-232
Dimensions (W x D x H) 431 x 320 x 160.5 mm
Weight 8,6 kg
Noise Level 28dB/33dB (Std./Boost Mode)
Power Supply: AC 100 - 240V Consumption: 310W (Std. Mode), 370W (Boost Mode), Standby <1W
Remote Control P/N No
Standard Accessories VGA Cable, Component Cable, HDMI Cable, User Manual (CD), Quick Start Guide, Warranty Card (by region), Remote Controller (with battery), AC Power Cord
Warranty Standard Warranty
Vivitek D5185HDFront LowRes
VivitekD5185HD RightHero HiRes

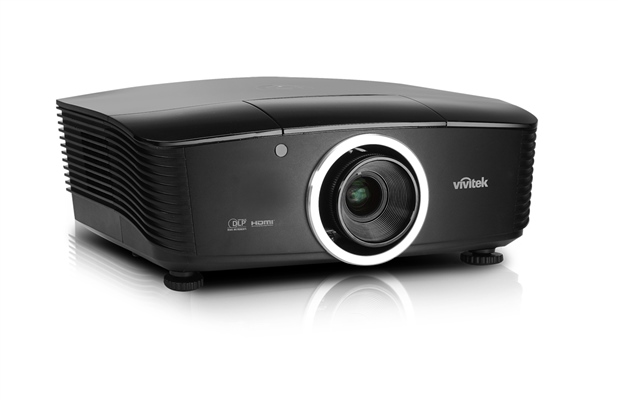

Vivitek D5185HD LeftHero LowRes
Vivitek D5185HD IO Ports LowRes

Lens Options

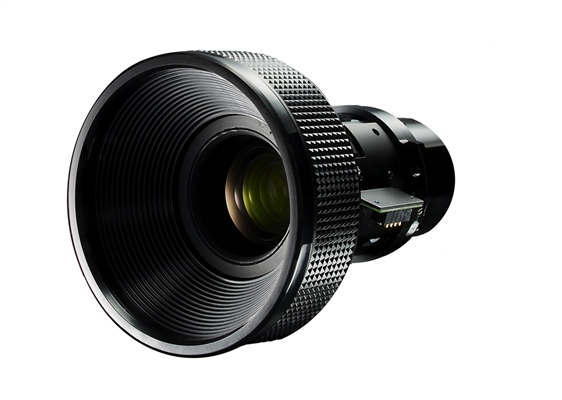

Standard Zoom D5000 D50180 D5185 D5280U DH5085 LR

Description: Standard Lens
Throw Ratio: 1.54 - 1.93

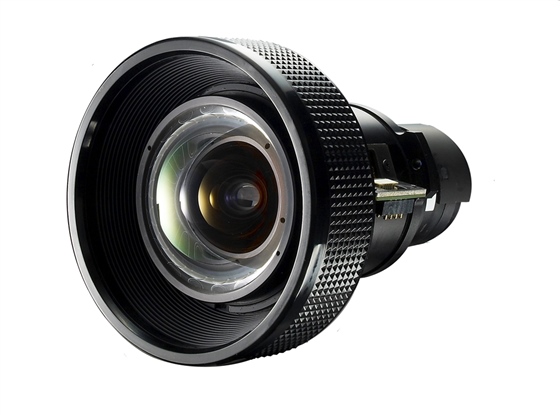

Fixed Short D5000 D50180 D5185 D5280U DH5085LR

Description: Fixed Wide Short
Throw Ratio: 0.77
Part number: 5811116225-SU

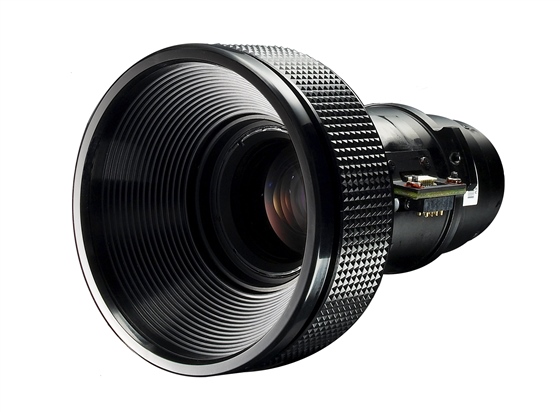

Medium Zoom D5000 D50180 D5185 D5280U DH5085

Description: Zoom Middle
Throw Ratio: 1.93 - 2.89
Part number: 5811116224-SU

Replacement Lamp

Lamp Photo 1 D5280U

Power: 280 W
Part number: 5811116085-SU

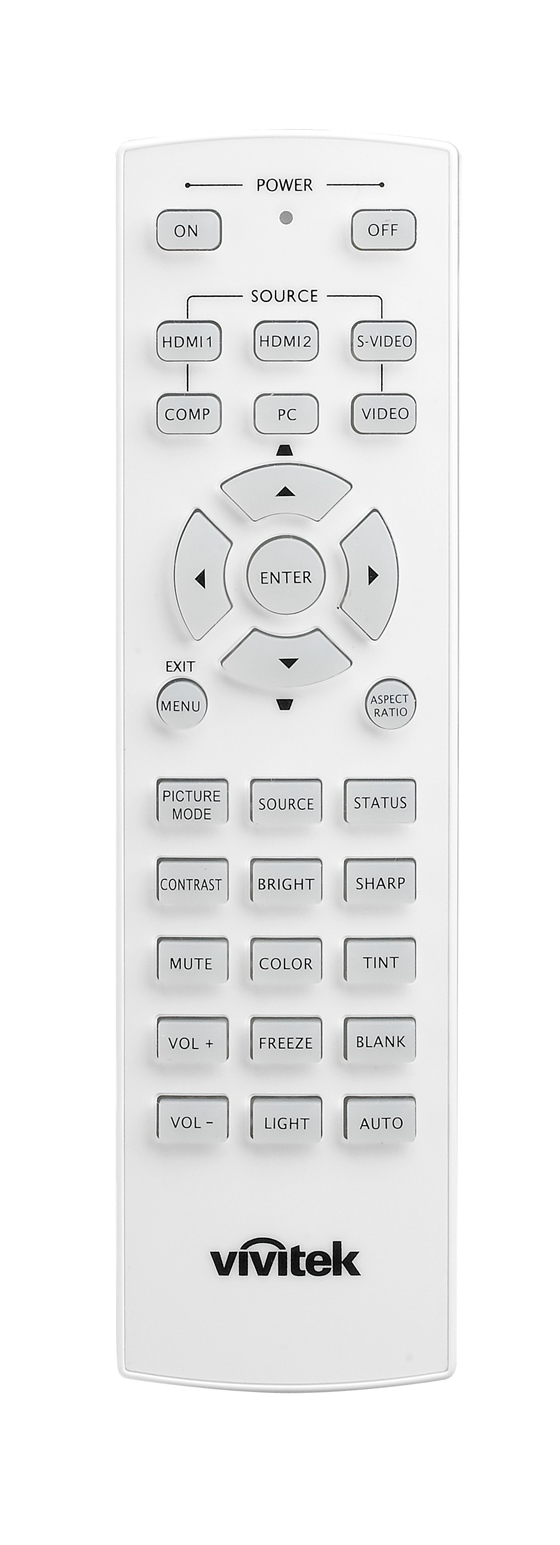

IR Remote Control

VivitekH1080 H5080 Sieries

Description: Remote Control HC 30 Keys
Part number: No

Vivitek Projector Distance Calculator v2.0




A =
Note on using the projector distance planning calculator and tips for projector installation:
Calculator accuracy +/-5%. The calculator is designed to help you plan your installation and find the right projector. It is not designed to provide exact dimensions. When calculating the throw distance, bear in mind that the distance is measured from the front of the lens to the projection surface, except for Ultra Short Throw projectors with a mirror system. Where possible, attempt to position the projector in the middle of the zoom range , which is where the optics is optimized for. Try to avoid the extreme outer boundaries as the projector lenses has variance and performance tolerances that could make the screen not being filled, or the image being larger than the screen, caused by small variances in the optical systems. If you need to be at the extreme outer boundaries, we recommend that you order the projector and test the actual distance in your environment before fixing any mounting parts to the wall or ceiling.
